Proaim SJ30 Powermatic Scissor 17ft Telescopic Video Camera Jib Crane | Payload: 30kg/77lb

Proaim SJ30 Powermatic Scissor 17ft Telescopic Video Camera Jib Crane | Payload: 30kg/66lb

JB-SCSR-30

€6.152,00 - €6.152,00
€6.152,00
€6.152,00 - €6.152,00
€6.152,00
or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

SKU : JB-SCSR-30

AT A GLANCE

Payload
Up to 30kg
Jib Length
17 ft
Compatible With
Professional Camera Rigs
3-Axis Camera Gimbals
Best For
Motorized Telescopic Jib Shots
Smooth Push-In / Pull-Out Camera Moves

Secure checkout | Fast delivery | 30-day returns | 1-year warranty

SJ30 PowermaticScissor telescopic jib crane

17 ft of motorized reach. Up to 30 kg.

Built for 3-axis gimbals and professional camera rigs, the Proaim SJ30 Powermatic Scissor 17ft telescopic video camera jib crane delivers motorized telescopic jib shots and smooth push-in / pull-out camera moves. It comes with a dampening head and remote controller: an advanced, retractable jib crane for precisely controlled camera moves that adds sweeping crane moves with stable, precise control.

Payload

30kg

66 lb

Maximum on the jib.

Jib length

17ft

5.2 m

Total length extended.

Dampening head

10–30kg

Mitchell mount

Head payload range.

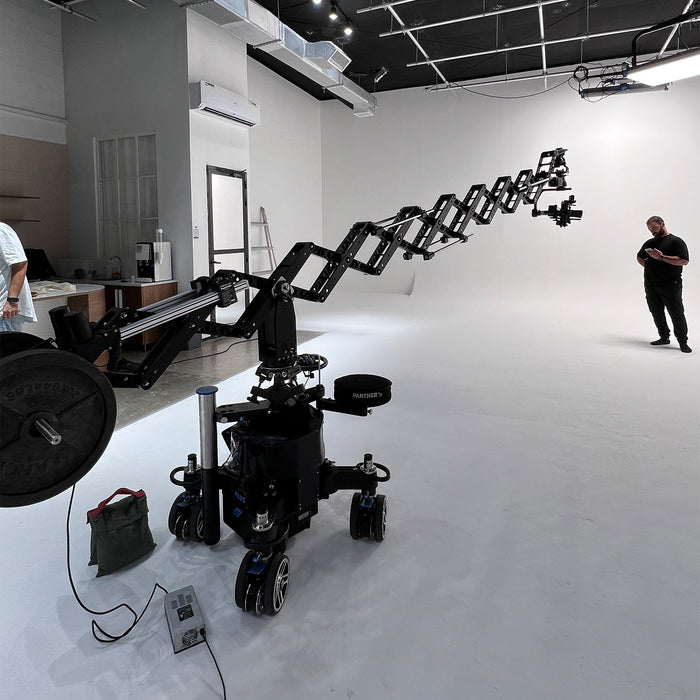

Proaim SJ30 Powermatic Scissor 17ft telescopic jib crane extended with a camera on a film set

01Precise engineering

Retracts at the speed you set.

Elevate your cinematography with stunning, captivating visuals as you move your camera in and out with the 17ft Proaim Powermatic Scissor Crane.

Its intelligent design pairs a controller with a dampening head, so the crane retracts forward or back at the set speed and dampening level, delivering super-smooth shots. The high-grade aluminum-built jib crane takes a payload of up to 30 kg / 66 lb.

Set speedForward or back
DampeningAt the level you set
CNCHigh-grade aluminum
Closed5.7 ft
Extended17 ft
SJ30 Mitchell dampening head on the scissor arm

02Effortless operation

No jerks, even on rapid moves.

The dampening head repositions the 3-axis gimbal back to its position during rapid movements, gracefully eliminating jerks for smooth, extensive camerawork. High-speed steel bearings ensure outstanding durability and strength, with smooth, soundless movement every time you extend or retract the jib.

For excellent support and stability, pair the Scissor Crane with the optional Proaim Toro Heavy-duty Mitchell Camera Tripod Stand or Proaim Gravity Heavy-duty Camera Tripod Stand.

70High-speed steel bearings
MitchellDampening head mount
10–30 kgHead payload range
SJ30 remote speed controller

03Full-featured controller

Command every camera move.

Advanced automation: powered by a motorized controller, the SJ30 handles retraction/expansion, forward/reverse settings, damping adjustment, speed control and direction control for enhanced control and precision.

The forward/reverse buttons push out and pull in the jib arm, and the speed dial sets the speed of its movements. The damping adjustment dial keeps movement smooth and stabilized as the jib expands and retracts, while the direction button locks it to move forward or reverse.

Speed dialMovement speed
Damping dialSmooth expansion
DirectionLocks forward or reverse
SJ30 motors, pan and tilt locks and monitor mounting arm

04User-convenience

Smooth, silent and locked in.

Two high-performance 15V DC motors give the jib a better driving force for smooth and silent operation. The tilt lock fixes the jib’s angle for linear tracking shots, and the pan lock holds the pan movement for high and low angle shots.

Mounting arms fit left or right to hold an LCD monitor for better viewing of your shots, and hi-tensile weight rods carry the counterweights for perfect balance and steady, effective shooting.

2 × 15VDC motors
<55 dBMotor noise
Pan & tiltCrane locks
SJ30 crane system packed in its flight case, wheeled across a film set

05Simplified transport

One flight case, any location.

The complete crane system fits in a flight case for easy storage and carriage to different sets and locations. The collapsible jib easily fits into tight indoor spaces, a private vehicle and on-location shoots.

Flight caseComplete crane system
5.7 ftClosed length
CollapsibleFits tight spaces

06Specifications

Scissor jib

ConstructionHigh-Grade CNC Aluminum
Compatible StandProaim Toro Heavy‐duty Mitchell Camera Tripod Stand (TP‐TORO‐01)
Proaim Gravity Heavy‐duty Camera Tripod Stand (TP‐GVTY‐02)
Payloadup to 30kg / 66lb
Total No. of High-Speed Steel Bearings70
Total Length Extended17feet / 5.2m
Total Length Closed5.7feet
Extended Height from Ground15.7 feet on 2.91 feet height of stand
Closed Height from Ground6.3feet
Crane Pan LockYes
Crane Tilt LockYes
Power SourceV‐Mount Battery (Not Included)Recommended more than 8000mah battery
Maximum Speed
Full battery, standard V mount 14.8volt		Scissor Jib Forward Speed - 13second
Scissor Jib Reverse Speed - 10second
Minimum Speed
Full battery, standard V mount 14.8volt		Scissor Jib Forward Speed - 30second
Scissor Jib Reverse Speed - 17second

Motor

IP44 ProtectionCertified
Rated Voltage15V DC
Rated Power60W*2
Nominal Current10A DC
Maximum Thrust Force1000N*2
Maximum Pulling Force1000N*2
Travelling Speed36mm/sec
Noise<55dB

Self‐balance weight (extended/collapsed)

Jib self-balancing with 68kg Weight

Camera weightJib is balanced with
1kg68+3.7kg = 71.7kg
5kg68+18.5= 86.5kg
10kg68+ 37= 105kg
20kg68+74 = 142kg
30kg68+111 = 179kg

Mitchell dampening head

ConstructionAluminum
Payload Capacity10kg to 30kg
CompatibilityMitchell Mount
Camera MountingMitchell
Dampening KnobYes
Weight of Dampening Head4.65kg / 10.2lb

Packing info

Product Weight (Without Packing)97.6kg / 215lb
Product Weight (With Packing)200kg / 440lb

User manual

User manualPDF ↓

In the box

  1. 01Proaim SJ30 Powermatic Scissor Jib
  2. 024x Guide Rods
  3. 032x Guide Rods
  4. 04Counter Weight Rod
  5. 05Remote holding bar
  6. 06Monitor Arm
  7. 07Speed controller Remote
  8. 08Mitchell Ronin Mount
  9. 09Sway Mitchell Dampening Head
  10. 102x weight Closers
  11. 11Camera mount plate
  12. 12Ronin controller bracket
  13. 13Counter weight bracket
  14. 14Clamp for remote
  15. 15Controller Spiral cable
  16. 16BNC wire
  17. 17HDMI male to male Wire
  18. 18D-Tap wire
  19. 1915V AC Adapter
  20. 20Female to Female Connector socket HDMI Mini
  21. 21Universal Adapter
  22. 224x Bush's
  23. 232x Mitchell Key
  24. 244x Allen Bolts (Size:-8x20)
  25. 254x Allen Bolts (Size:-8x25)
  26. 262x Screws For Monitor Arm (Size:- 3/8",1/4")
  27. 272x Spanner (Size 17mm)
  28. 284x Allen Key L-type (Size:- 1.5mm,2mm,4mm,5mm)
  29. 292x Allen key T-type (Size:- 5mm,6mm)
  30. 30Flight Case
Fast deliveryOn all orders
Quick supportEfficient customer service
Easy returnsUp to 30 days
1-year warrantyOn all products

Q&A

Ask a Question



  • How portable is the system?

    Comes with a flight case for easy transport and storage.

  • Can accessories like monitors be mounted?

    Yes, mounting arms allow attachment of monitors for better viewing.

  • Can I control the speed of the jib movement?

    Yes, the controller allows precise speed adjustment.

  • Does it allow locking of movement axes?

    Yes, includes tilt and pan locks for precise shot control.

  • What is the maximum payload capacity?

    Supports up to 30 kg / 66 lb of camera and rig setups.

  • How long is the jib arm?

    It features a 17ft telescopic scissor arm, allowing extended reach with controlled linear motion.

  • How is the crane powered?

    It uses dual 15V DC motors for smooth and silent operation.

  • Is the crane suitable for solo operators?

    Yes. The powered telescopic action and intuitive controller make it manageable for single-operator workflows, depending on setup complexity

  • Can this crane be used with gimbals?

    Yes. The dampening head helps stabilize 3-axis gimbals, maintaining balance and alignment during movement.

  • Is the telescopic movement motorized?

    Yes. It is motorized, controlled via the included controller for precise speed, direction, and damping adjustments.

  • What's the best way to attach Tilta Remote Control Handle for Advanced Ring Grip for RS 2 and RS 3 Pro?

    The Tilta Remote Control Handle for Advanced Ring Grip for RS 2 and RS 3 Pro can attach with a standard NATO rail. It should be possible to mount this handle controller with a NATO rail attachment and an appropriate clamp, such as a Manfrotto Super Clamp.
