Proaim Kite-22 Popular Package

or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

Proaim Kite-22 Popular Package is the best professional camera crane system for “GLIDING”& “FLOATING” graceful camera shots each time, every time as you have always admired in high budget Hollywood movies. Sweeping panoramas to incredible framed shots and everything in between, all designed to bring the ‘wow factor’ to your audience and add energy to your story. The camera jib package includes solid aluminum 150mm bowl heavy duty jib stand with spreader to stabilize the jib crane system.

Congratulations to Sébastien PINS (Wildlife Cinematographer)

We are extremely Happy and Proud to be a part of Mr. Sebastien's Journey of making this extremely successful Short Film featured across Various Film Festivals and Received an Award in the United Nations. Congratulations and All the Best for the Future !

Compact and robust floor Dolly with 360 degree rotating wheels is best suited to support heavy duty stand. The 2-axis Senior Pan Tilt head with remote control operation features 360 degree panning and tilting movement with reversal point. The kit also includes 12 volt Power Pack for uninterrupted shooting and the whole package comes in high impact protective packing for carrying, transporting and storing your valuable equipment. Show your talent of creative vision to the world with this small investment that you will not find anywhere else.

Not Included : Weights

The Kite-22 telescopic jib arm sections are made from hi-grade Aluminum constructions that makes it enough sturdy and robust. Its sections collapse into each other for compact storage.
- Each jib arm sections are expandable from 4ft (one section) to 24.5ft (seven section) in 3ft increments giving 1ft overlaps between sections.
- As each section is pulled from the previous section, you can store unused sections in the tail as ballast weight and lighten your counterweight demand.
- The Rear Control Centre has provisions for mounting the Joystick Control box, LCD Monitor & Zoom Controller.

24.5ft Crane can also be used in the following lengths : 24.5ft, 22.3ft, 19ft, 15.10ft & 12.8ft

camera mounting crane

Designed for DV, HDV and broadcast cameras weighing up to 7.5kgs/16.5 pounds, our Proaim Senior Pan-Tilt head offers 360 degree endless panning and tilting with reversal points.

- Runs on 12v DC power produced by the included A/C adapter or also accepts external 12V DC battery power through the included 3mtr long 4 pin XLR cable for outdoor shooting.
- You receive the Pan-Tilt Head with assembled wiring with Top and Bottom Motor.
- To install Power out to head (4 pin connector) and 12 volt DC power (4 pin XLR) in rear of joystick box.
- Creative flexibility is a built in component as the head can also be used with jib arms, tripods and in other remote operating situations that dictate increased production value.

camera jib pan tilt


- The joystick control system includes a 9mt long operating cable and AC adapter.
- Operational from a flat surface in handheld mode or when attached to the bottom of the jib arm.

Camera jib motorized head


- Joystick has proportional linear movement i.e. farther you move the joystick, the faster the head moves.
- Joystick is touch sensitive
- Small movement – less speed.
- More movement – more speed.

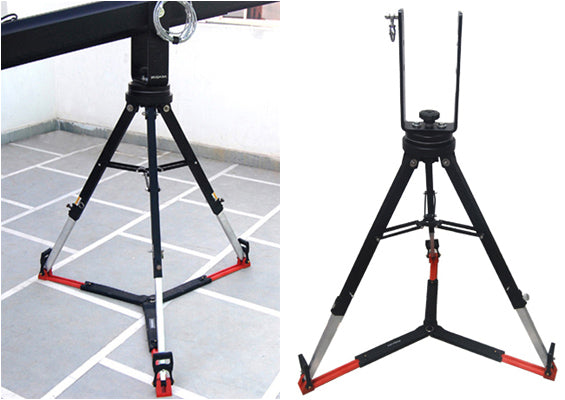

LW-150 Jib Stand
The LW-150 Heavy Duty Jib Stand specifically designed for Kite-22 Octagonal Cranes. It comes with Spreader for higher stability & to support heavy loads.

camera crane with tripod

D-33 Pro Dolly is the most portable camera wheel dolly in the market. It's a compact, lightweight and versatile pro dolly best suited for supporting all heavy duty stands.
- Adjustable tripod holding allows this dolly to match with many other tripods.
- Has smooth 360 degree rotating wheel bearings.
- Inbuilt wheel lock freezes the rubber wheels and stabilize the system.
- It folds to a compact size for easy transport.

Camera jib dolly

For Dslr Video Camera Camcorder

PROAIM POWER PACK is a high power, professional 12V battery pack designed for portable applications. One of the unique features of PROAIM POWER PACK is that it holds battery check feature wherein LED charge indicator, indicates the power consumption.

Professional Camera Crane

This tool / accessory roll pouch provides Rapid Access to Various Tools such as Allen Keys or wrenches. This premium quality tool roll has 10 Various Pockets to neatly organize a variety of hand tools so you can work quickly and efficiently.

camera crane stabilizer

High Impact Protective Packing for Carrying, Transporting and Storing your Valuable Equipment – absolutely FREE with this Product. The Proaim Kite-22 telescopic camera jib in its storage configuration. A sophisticated production tool that re-defines the term value added for your bottom line and most important, your creative imagination.

Heavy duty Cinema crane

The Supporting accessories are for demonstration purpose only.

Jib Arm Octagonal Tube Outer Diameter Inner Diameter
Ist Section(weight section) 164mm 156mm
2nd Section 154mm 146mm
3rd Section 144mm 136mm
4th Section 134mm 126mm
5th Section 124mm 116mm
6th Section 114mm 106mm
7th Section (Top Section) 104mm 96mm

Jib Arm Material High Grade Aluminum HE30
Jib Arm Shape Octagonal
Height from Ground 19ft(5.8 Meter)
Jib Arm Thickness 3mm
Jib Crane Length 24.5ft (7.5 Meter)
Jib each Arm length 4ft
Crane Pan Lock Yes
Crane Tilt Lock No
Finish Black Powder Coated
Coupling Jib Arm Sections A union coupling design of Jib Arm is done by washer and Steel bolt and shank with external clamps as well as Pin Lock for double locking System
Jib Arm Break downs to 7 Sections of 4ft each
Camera Platform Leveling By Control Cable
Stress cable High carbon steel with electro galvanized 4mm tested wire at 800kg
Multiple Alignment Multiple user friendly alignment of Stress Cable is provided For making Jib Stand straight without any curve
Carrying Case size 51 inches
Jib Crane Weight 30kg (66lbs)
Max Camera Package Load Capacity(including Pan Tilt Head) 20kg (45lbs)

Height of Jib Arm while Your Stand Adjusted at Maximum height of 4ft - 19ft high at 24.5ft length
- 16.6ft high at 22.3ft length
- 14.3ft high at 19ft length
- 12.2ft high at 15.10ft length
- 10ft high at 12.8ft length

Balancing Chart Self Balancing When 2.2lbs weight is on the Head Plate
Add Counter Weights in the rear section of Jib according to Camera and Pan Tilt Head weight as per this chart : 24.5ft jib arm balances at about 121.5lbs.
22.3ft arm balances at about 119lbs.
19ft arm balances at about 116lbs
15.10ft arm balances at about 114lbs.
12.8ft arm balances at about 112lbs.
24.5ft arm balances at around 133lbs.
22.3ft arm balances at around 128lbs.
19ft arm balances at around 122lbs.
15.10ft arm balances at around 117lbs.
12.8ft arm balances at around 115lbs.

Pan-Tilt Material High Grade Aluminum
Max Camera Package Load Capacity 7.5kg (16.5 lbs)
Pan movement 360 degrees
Tilt movement 360 degrees
Speed Variable-controlled speed from 6 degrees/sec (low speed) to 51 degrees/sec (high speed)
Slowest Speed : 2 minutes
Highest Speed : 7 seconds.
Motors Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees
Gears 2- Silver Big Gears (Dia- 89mm)
2- Brass Small Gears (Dia- 14mm)
Minimum height of head 18.5 inches
Maximum height of head 26 inches
AC Adapter input AC 100 - 240V ; output - DC 12V -2A
Cable Length 9 meter
Cable Connector 4-Pin XLR
Battery Cable 3 Meter long
Weight 7.2kg (15.8 lbs)
Carrying Bag Dimensions 50 X 35 X 19 cm

Joystick Controller 2-Axis
Connectors 2x 4-Pin XLR male connectors
Pan/Tilt Direction Yes
Upgraded with Damping knob

Weighing Capacity 150kg
Material Used Solid Aluminum
Hub Assembly Material High Grade Aluminum HE30
Bowl Mount 150mm
Bowl Thickness 30.8mm
Stand Minimum Height With Bowl 2ft 2 inch
Stand Maximum Height With Bowl 3ft 2 inch
Distance from Center 22 inch
Weight of Stand 6.7kg
Weight of Spreader 1.8kg
Spreader Max Opening : 24 inch
Min Opening : 15 inch
Length of Hard Case 28.7 inch

Maximum Load capacity 800kg
Material Used MS powder coated
Bolts Steel bolts with washers
Wheels Diameter 148.7mm
Wheels Thickness 49.40mm
Wheel Material Polyurethane
Central Distance 72cm
Dimensions Folded (L x w x h) 84 x 28 x 22 cm
Doorway Width - 144cm
Height From Ground 9 inch
Weight of Dolly 15.2kg
Dolly Type Three leg Floor dolly
Wheel Lock Yes

  • Proaim Kite-22 Long Telescopic Camera Jib Crane
  • Proaim 150mm bowl Jib Stand with spreader (LW-150)
  • Proaim D-33 Pro Dolly (D-33)
  • Proaim Power Pack (P-PP-Y)
  • Proaim Sr. Pan Tilt Head with Joystick Controller & Accessories (PT-SR)
  • Proaim Lanc Zoom Controller (P-ZC-3DV)
  • Customized Storage cases for Camera Jib Arm , Jib Stand & Accessories
  • Complimentary Tools and Tool Pouch/Wrap
