Proaim Gimbal-Bird Body Support Rig for 2-Axis / 3-Axis Camera Gimbals

Supports Top Handle-Bar & Ring-Based Gimbals | Payload Range: 5-15kg/11lb-33lb

Save 11% Save 11%
Original price €407,00
Original price €407,00 - Original price €407,00
Original price €407,00
Current price €361,00
€361,00 - €361,00
Current price €361,00
or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

SKU : P-GBD-01

GET SMOOTH & DYNAMIC SHOTS WITH UNMATCHED COMFORT!

01.

COMFIER & ABSOLUTE GIMBAL SUPPORT

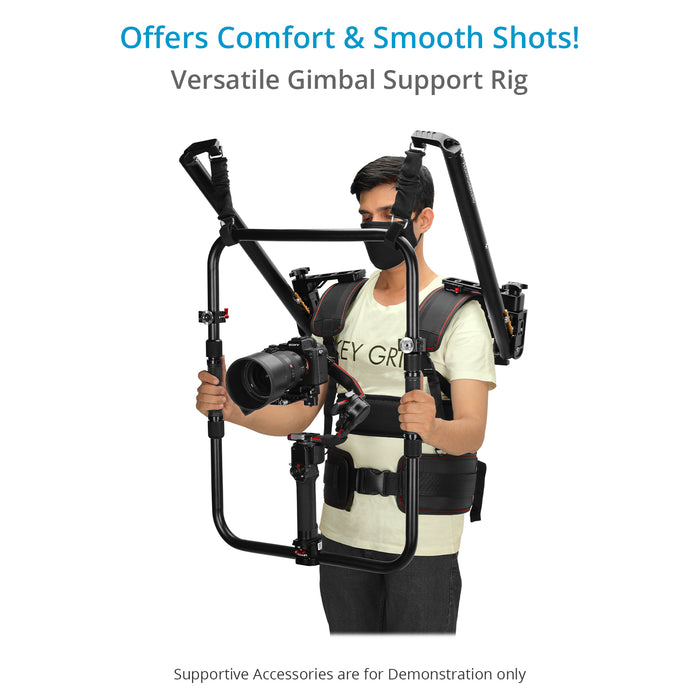

Get a comfortable shooting experience with Proaim's Gimbal-Bird Support Rig, which lets you operate your gimbal comfortably for considerably longer periods while not sacrificing flexibility or performance.

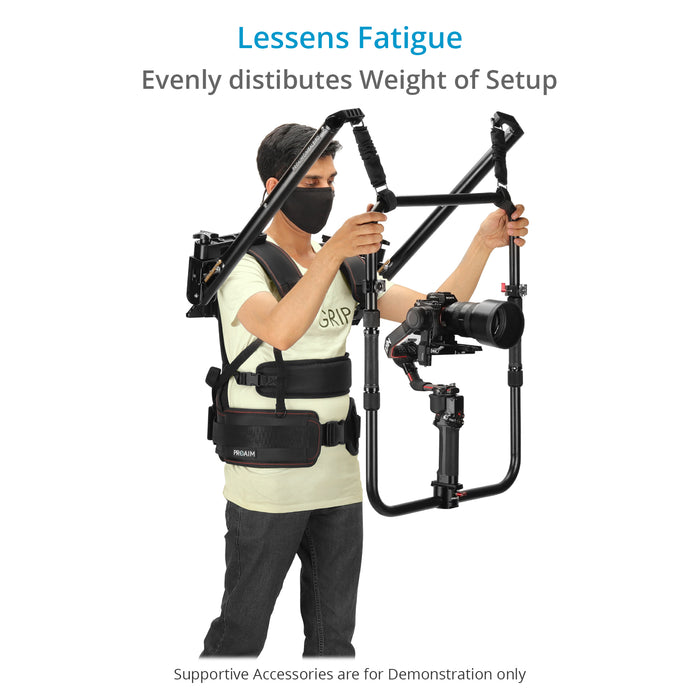

It is designed in a way that it transfers the load-bearing points of the arm on the left and right shoulders. In this way, the shoulders are directly stressed, and stress is evenly distributed without pressure.

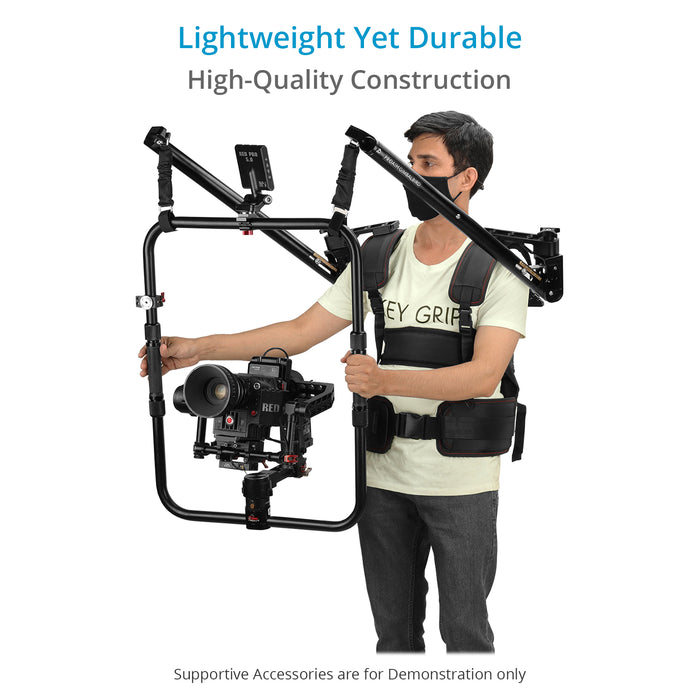

Its high-quality craftsmanship makes the rig exceptionally durable while offering an impressive payload range of 5-15kg/11lb-33lb for your camera gimbal setup.

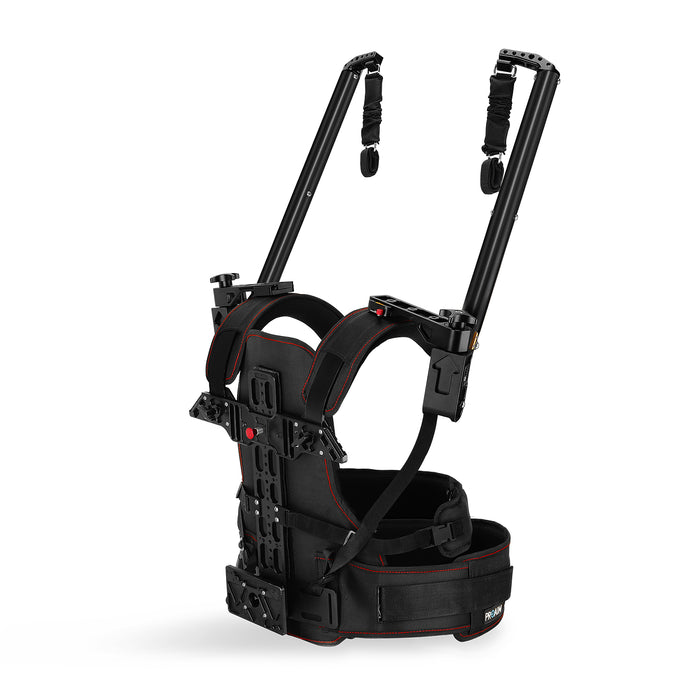

Gimbal-Bird Support Rig is an ergonomically designed Breathable body harness with spring-loaded arms, stainless-steel bearing shoulder pads, and an adjustable waist belt.

Proaim Gimbal-Bird Body Support Rig for 2-Axis / 3-Axis Camera Gimbals
Proaim Gimbal-Bird Body Support Rig for 2-Axis / 3-Axis Camera Gimbals

02.

DESIGNED WITH PRECISION

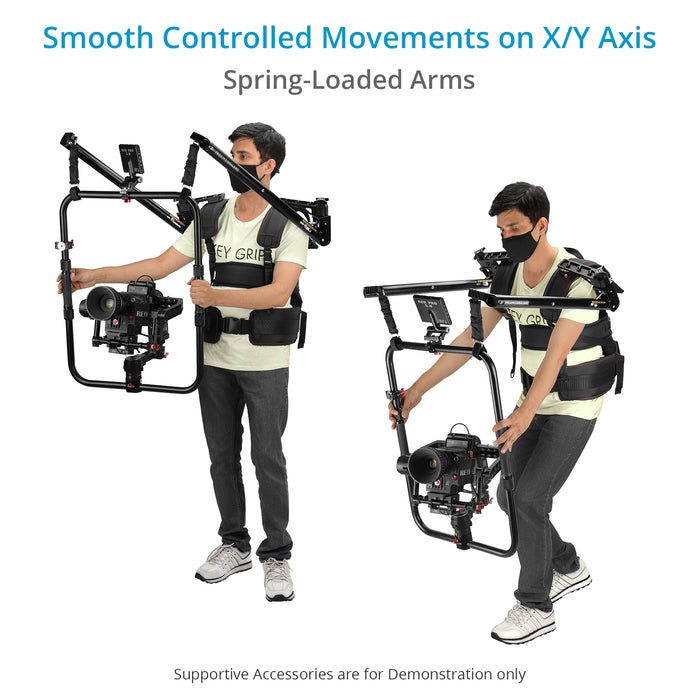

The Two shock-absorbing arms offer smooth movement on both the X and Y axes.

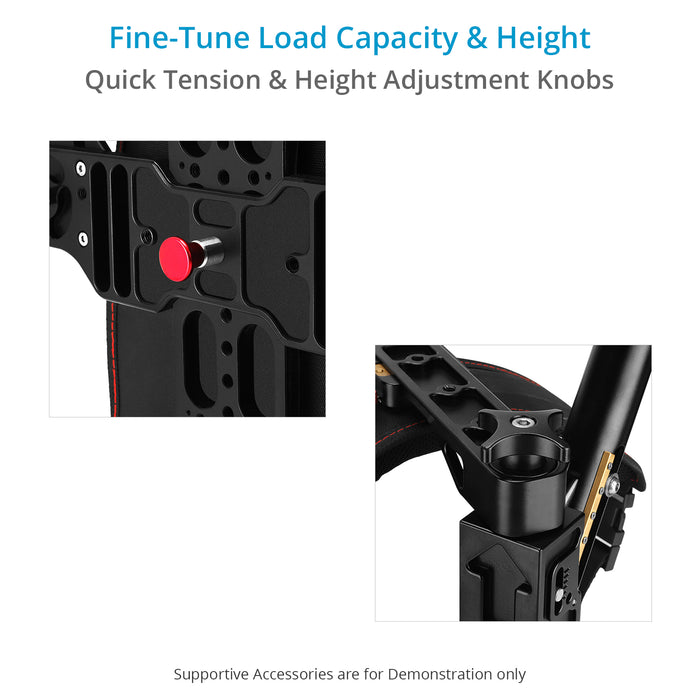

Each arm includes two tension knobs that allow you to fine-tune the tension based on the weight of your gimbal rig as well as your desired operation style.

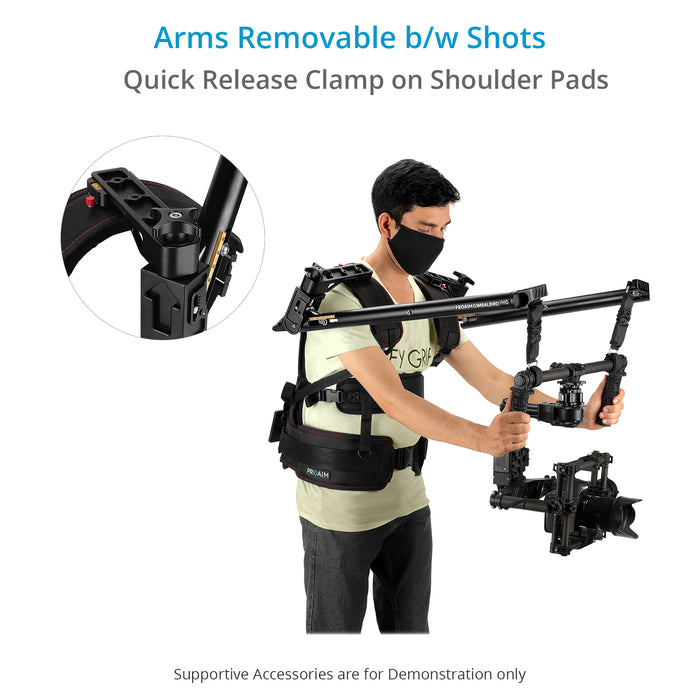

The arm attaches to the shoulder pads through an inbuilt quick-release clamp, allowing you to remove the arm and keep the vest on between shots, then reattach it anytime you're ready to operate again.

03.

VERSATILE MOUNTING

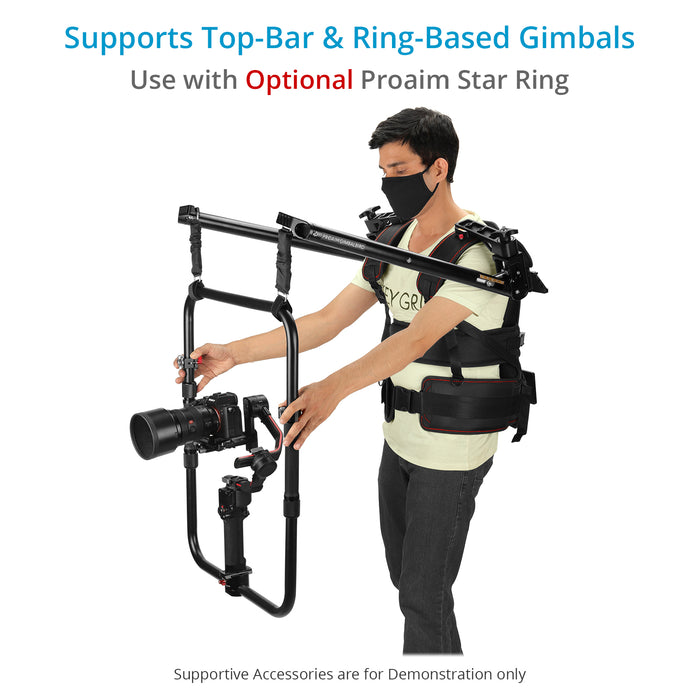

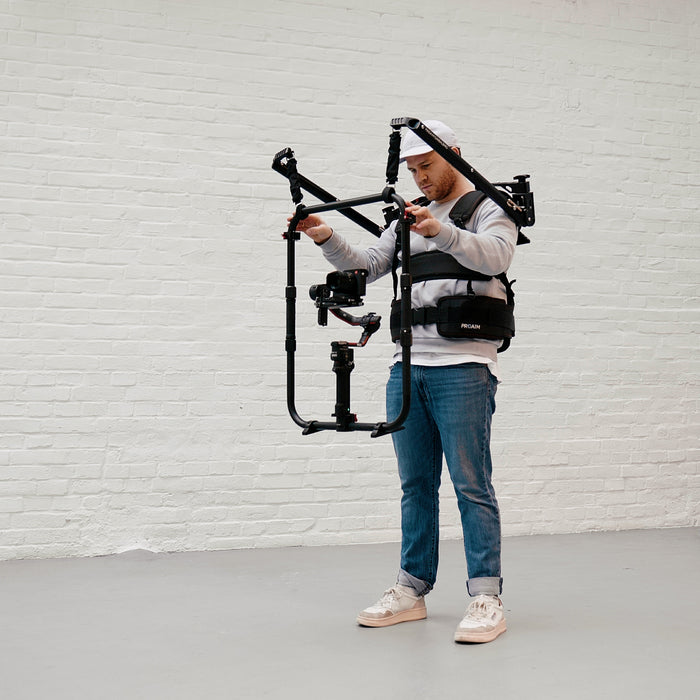

The gimbal Bird can be attached to both the top bar/handle bar-based gimbal system or, Gimbal Ring like the Proaim Star Ring, offering extra stability and control over your 2 and 3-axis gimbals during hand-held shooting.
There are many 1/4"-20 and 3/8"-16 threads on the Gimbal-Bird’s arms for mounting setup accessories, as well as several extra 1/4"-20 threads at the rear of the vest for stringing up counterweights for balancing if needed.

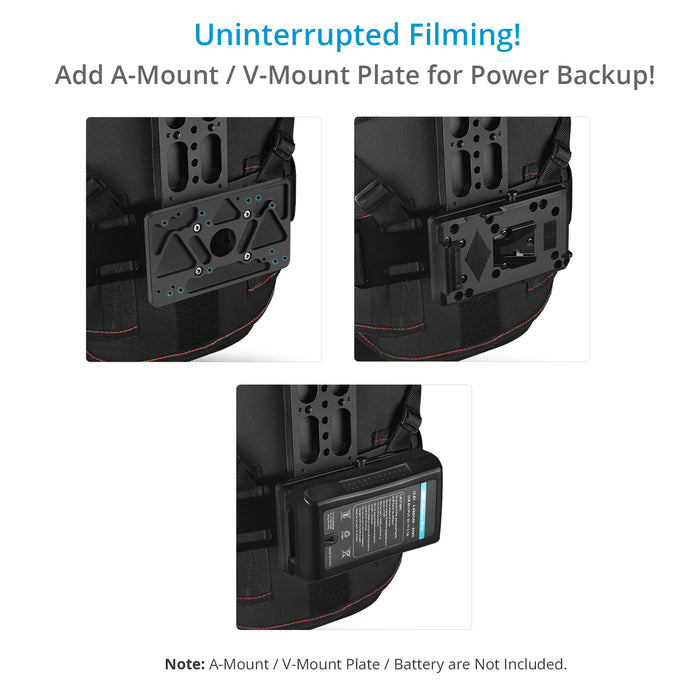

Also, you have the option to mount a V-Mount plate on the back of the vest for attaching a V-Lock Battery as a backup for your gear

Proaim Gimbal-Bird Body Support Rig for 2-Axis / 3-Axis Camera Gimbals
Proaim Gimbal-Bird Body Support Rig for 2-Axis / 3-Axis Camera Gimbals

04.

ROOM FOR ADJUSTABILITY

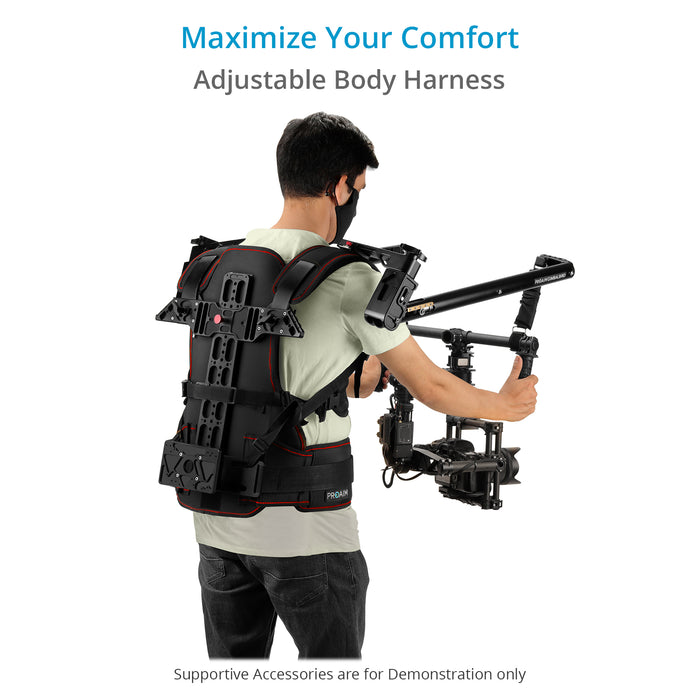

A red knob at the back of the vest lets you control the height of the support bar and let you attach or position the shoulder pad, suiting your height.

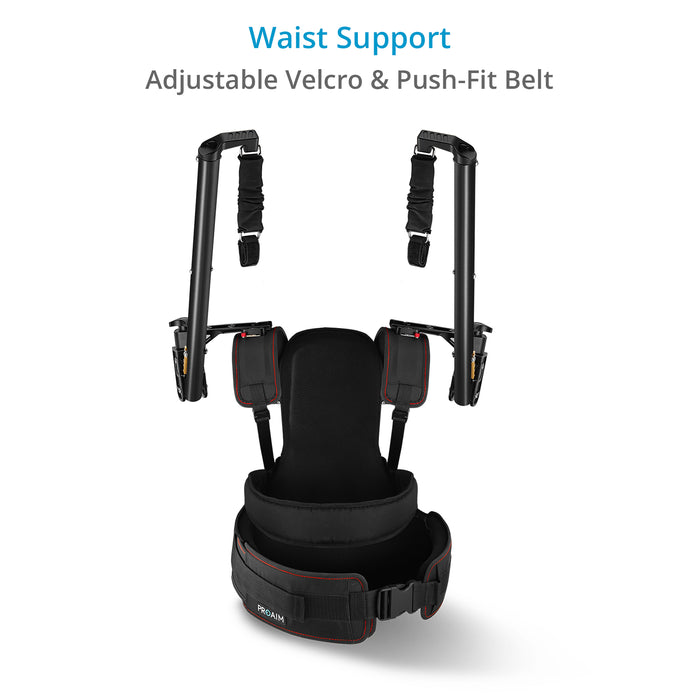

And it comes with an adjustable waist belt made with Velcro straps and Push-fit buckles for added support and stability.
You can easily adjust the width of the support vest according to comfort.

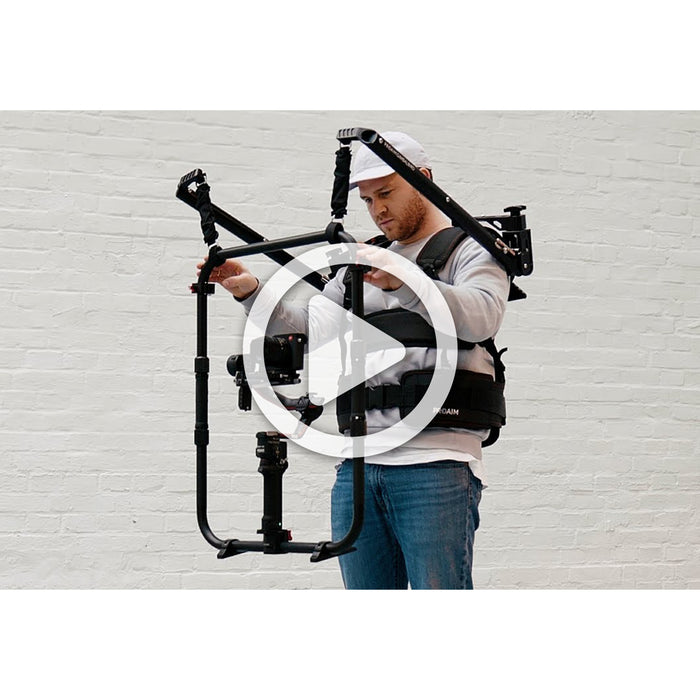

IN-ACTION VIDEOS

SPECIFICATIONS

Construction

  High-Grade CNC Aluminum, Stainless Steel & Brass

Vest Material

  Foam-Padded, Sweat-free, Breathable Fabric

Compatible Gimbals

  2-Axis Gimbals: For Zhiyun Crane 2 & 3S / DJI Ronin S & RS 2 / Moza Air Gimbal,etc
  3-Axis Gimbals: DJI Ronin (all models), Freefly Movi (M5/M10/M15) & Other Similar Models

Load Capacity

  Minimum: 5kg / 11lb
  Maximum: 15kg / 33lb

Compatibility

  Proaim Handheld Star Ring for Gimbal Camera Stabilizers & Flowline Rigs

Gimbal Mounting

  Attaches via Top-Bar & Ring-Based Gimbals, OD-30mm (Proaim Star Ring)

Accessory Mounting

  Multiple 1/4”-20 & 3/8”-16 threads

Counterweight Mounting

  1/4”‐20 threads at the back

Waist Adjustment

  28inch to 46inch

Dimensions

Product Weight (Without Packing)

  8.3kg / 18.29lb

Product Volumetric Weight (With Packing)

  22.3kg / 49.16lb

IN THE BOX

Proaim Gimbal-Bird Body Support Rig for 2-Axis / 3-Axis Camera Gimbals

USER MANUAL


Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products





  • What is the difference between ST-FLEXI-PRO and P-GBD-01?

    The Proaim Flexi Rig is based on a system of Bungee Fabric that works as a spring whereas the Proaim Gimbal bird is more like an Exovest system that's based on Springs in the arm.
    Since, the Proaim Flexi Rig is a bit light weight whereas the Proaim Gimbal bird is springs based therefore tension can be adjusted on the payload, besides it will provide a flexible and smooth response on curves.
