01.

PROFESSIONAL. STRONG. LIGHT. SMOOTH.

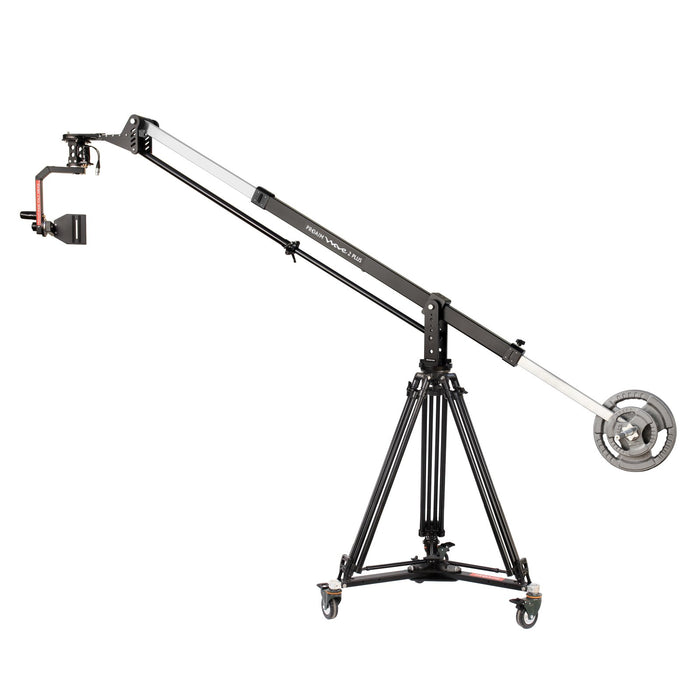

Proaim 10 ' Wave-2 Plus Video Jib Crane, specifically designed for indoor & outdoor video productions, is a portable filming solution for videographers and cinematographers who need a lightweight and ultra-portable Crane system.
The Jib has many great features such as telescopic design, versatile camera mount, sturdy assembly hub, panning knobs, making it one of the most value for money jib.
It allows capturing smooth, dynamic sweeping pans and camera rise.
High strength Aluminum construction with unbeatable stability holds camera setups up to 25kg / 55lb payload.

02.

EXPERTLY CRAFTED JIB
The Jib has a camera head mount that accepts 75mm/100mm fluid heads.
Two Arm Design offers enhanced strength & stability to the entire jib setup.
The Jib comes with pan knobs to control the panning of Jib.
Built-in bubble leveler offers fast, accurate set up on uneven surfaces.
Assembly hub provides the perfect drag for smooth panning of the jib arm and absorbs unwanted vibration or movement from the operator.
Hi-tensile weight closers keep the weight discs intact for perfect balance.

03.

ADAPTABLE LENGTHS

This travel-friendly Jib telescopes from the backside, which helps in the balancing of Jib. You can adjust the arm length from 6 feet to 10 feet.
The ability to change the length allows you to use the Crane in various scenarios.

04.

SOLID FOUNDATION FOR WAVE 10' CRANE
This excellent combination of CST 100mm Tripod Stand and Portable Camera Dolly is sturdy enough to support the Crane when it's fully loaded and weighed.
The Tripod with spreader gives immense support with an incredible payload of up to 80kg/176lb and is highly stable in use.
Heavy-duty Dolly gives movement to the Crane mounted on the Tripod and quickly takes payloads up to 500kg/1100lb.
The main features of Dolly are – Secure Tripod feet holders, locking brakes, high-quality wheels and foldable design.

05.

ENHANCE YOUR CREATIVE VISION

Proaim Sr. Pan Tilt Head
Proaim Sr. Pan tilt offers complete 360-degree pan & tilt inaudible movements while keeping your camera safe and secure. It is engineered to support cameras up to 7.5kg/ 16.5lb with ease. Creative flexibility is a built-in feature. The Pan Tilt head can be used with jib crane arms, tripods, and other remote operating situations that dictate increased production value. Incredibly accurate and easily controllable, Proaim Sr. Pan tilt is a user-friendly Controller System.

06.

PAN TILT FEATURES

Two Coreless Motors
Two coreless high torque motors provide inaudible movements along with a payload capacity of 5kg / 11lb, which is substantially higher than its counterparts.

Brass Gears
The high strength brass gears are engineered to withstand long hours of functions and minimal wear and tear.

07.

EASY OPERATION

Speed Controller- Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot.

Dead Spot- The dead spot prevents the head from stopping suddenly with a jerk.

Damping Control- Damping control prevents the head from stopping with a jerk enabling you to achieve smooth endings.

Pan-Tilt Direction- You can reverse the panning & tilting direction as & when required.

08.

MOST AFFORDABLE JIB SOLUTION
For DSLR Video camera rigs, there isn't a better crane system for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 10' Wave-2 Plus Jib package eliminates that concern by providing an excellent jib solution at an economical price.

09.

SIMPLIFIED TRANSPORT
The Crane System comes in high-quality bags for easy storage. These compact bags are easy to carry with you to different sets and locations.

  Proaim 10' Wave-2 Plus Camera Jib Arm
  Proaim CST-100mm Bowl Tripod stand with Aluminum Spreader (CST-100-01)
  Proaim Portable Dolly (P-PRT-D)
  Proaim Sr. Pan-Tilt Head (PT-SR)
  12V Joystick Controller
  75mm Conversion Ring
  100mm Bowl Adapter
  Flat base plate
  Storage Bag
