Proaim 15mm Quick Release Camera Base Plate with Dovetail (ARRI Standard)

Original price €99,00 - Original price €99,00
Original price
€99,00
€99,00 - €99,00
Current price €99,00
or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

SKU : P-BPDP-15

Proaim 15mm Base Plate with Dovetail Tripod Plate

Lets you easily mount your camera on a shoulder rig or tripod.

01.

PROAIM 15MM BASE PLATE

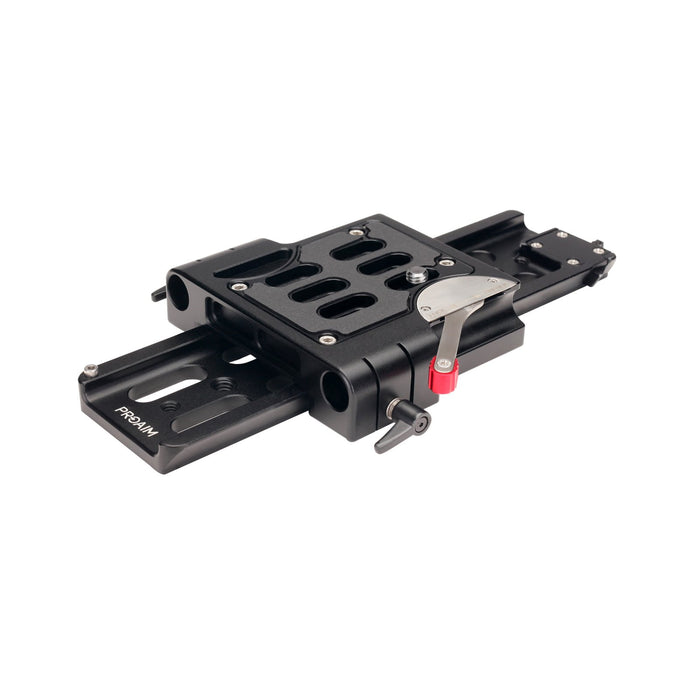

The Proaim 15mm Base Plate is an ARRI standard bridge plate with 15mm studio offset spacing and rods spaced 100mm center-to-center. This Industry standard spacing ensures proper alignment for all of your accessories. It can be converted from RED standard height to ARRI standard height, making it compatible with any type of camera rig. The rubberized top coating prevents twisting and slotted design accommodates non-standard screw spacing.

Proaim 15mm Quick Release Camera Base Plate with Dovetail (ARRI Standard)
Proaim 15mm Quick Release Camera Base Plate with Dovetail (ARRI Standard)

02.

CAMERA COMPATIBILITY
It is compatible with all DSLR Video cameras including Blackmagic Panasonic RED WEAPON/SCARLET-W/RAVEN/EPIC/SCARLET.
When combined with Proaim Canon Base plate, it adapts cameras like Canon's C100 and C300 Mark II/C100/C300/C500.

03.

PROAIM DOVETAIL TRIPOD PLATE
The Dovetail Tripod Plate is an 10" ARRI standard plate with safety catches on each end. It attaches natively to OConnor 2060, OConnor 2575, OConnor 120EX and Sachtler Cine 30. You can also attach it to most other tripod heads via screws.

Proaim 15mm Quick Release Camera Base Plate with Dovetail (ARRI Standard)

SPECIFICATIONS

Construction

  High-grade CNC Aluminum

Weight

  720 gram (1.58 lb)

Dimensions

  36 x 160 x 260 mm ( 1.4 x 6.2 x 10 in)

IN THE BOX

Proaim 15mm Camera Base Plate
Proaim Dovetail Tripod Plate
(2) 3/8”-16 screws
(2) 1/4”-20 screws

USER MANUAL


Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products





  • Is Dovetail SKU: P-BPDP-15 is compatible with Orion gear head ?

      Yes, the Proaim 15mm Quick Release Camera Dovetail Plate (P-BPDP-15) is comptaible with the Proaim Orion Geared Head (P-OGR-H).
