CAMTREE-MB-20 Swing Away wide angle Matte Box

CAMTREE MB-20 Swing Away wide angle Matte Box

Sunshade for Lenses up to 105mm in Diameter

4 reviews
Save 26% Save 26%
€121,00
€121,00 - €121,00
€121,00
€89,00
€89,00 - €89,00
€89,00
or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

SKU : C-MB-20

PROFESSIONAL & AFFORDABLE

A Perfect Companion for Your Camera Kit!

01.

LIGHTWEIGHT. DURABLE. VERSATILE.
The MB-20 is a Lightweight Camera Mattebox for run-n-gun shooting and is always up to the task.
It’s a 15mm Rod-mount Matte box for Lenses with up to 105mm outer diameter.
The High-impact Sunshade made of durable polymer protects your lens from unwanted dust, dings, or unexpected falls.

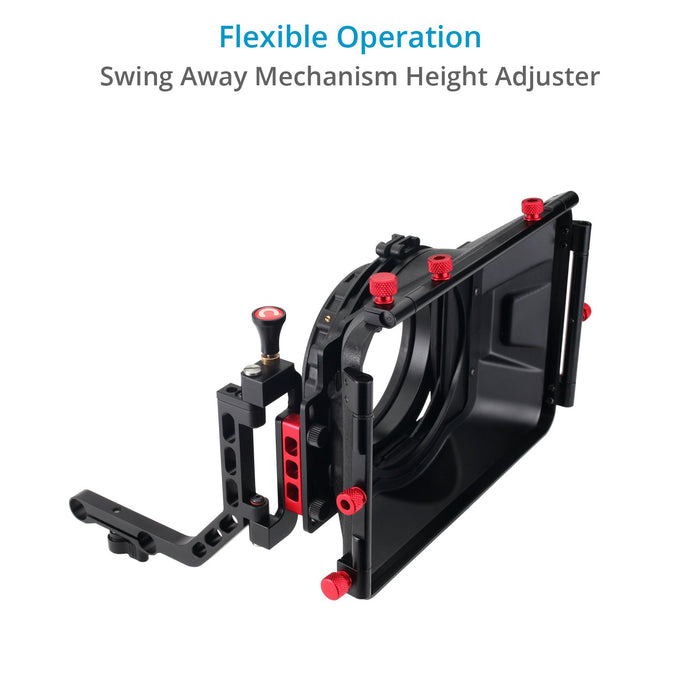

The swing-away design allows you to quickly move the matte box out of the way to check or change lenses, without having to remove the matte box from the support rods.

CAMTREE MB-20 Swing Away wide angle Matte Box
CAMTREE MB-20 Swing Away wide angle Matte Box

02.

THE BEST FILTER HOLDER

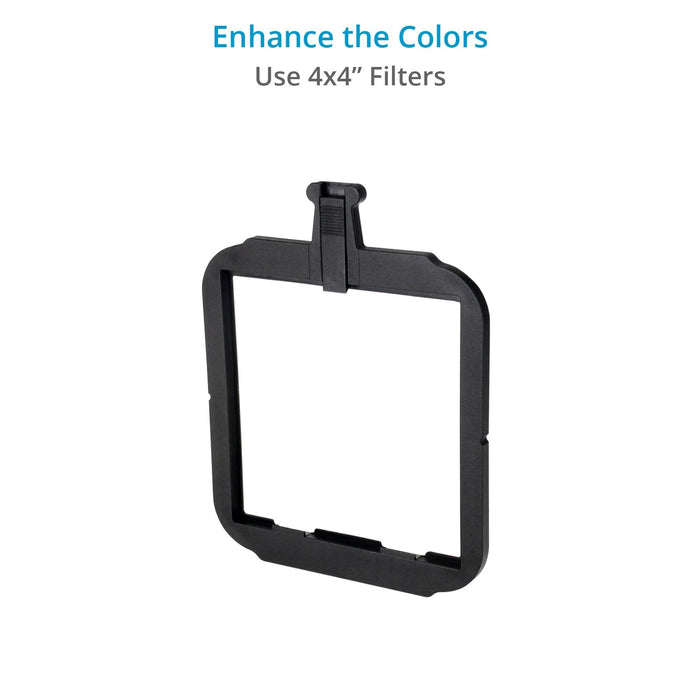

The MB-20 matte box features two 4x4 filter holder(s). One is 180 degree rotatable & other is static. Smartly designed filter holder(s) allows you to install or remove filters without disturbing the whole setup.

03.

WIDE COMPATIBILITY

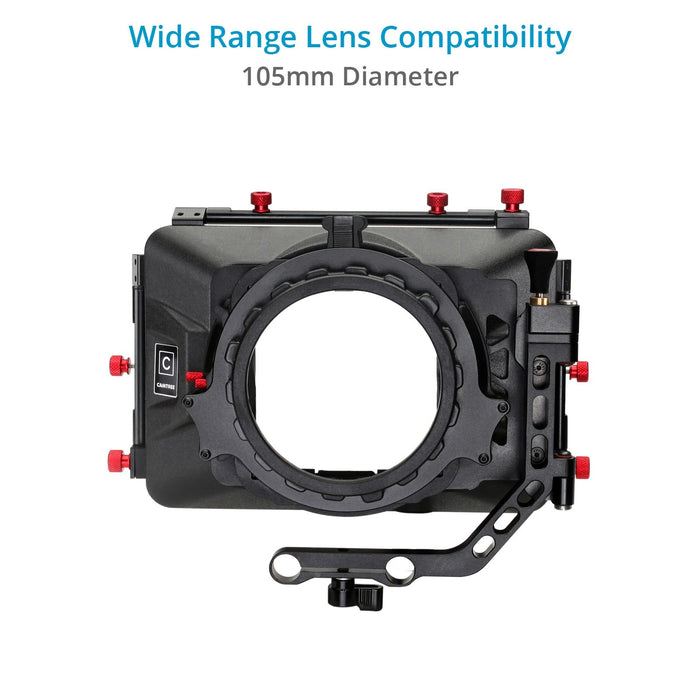

The MB-20 matte box accommodates cameras and lenses up to 105mm in diameter.
16:9 aspect ratio format allows this matte box to be used with wide angle lenses.

CAMTREE MB-20 Swing Away wide angle Matte Box
CAMTREE MB-20 Swing Away wide angle Matte Box

04.

CONTROL THE LIGHT

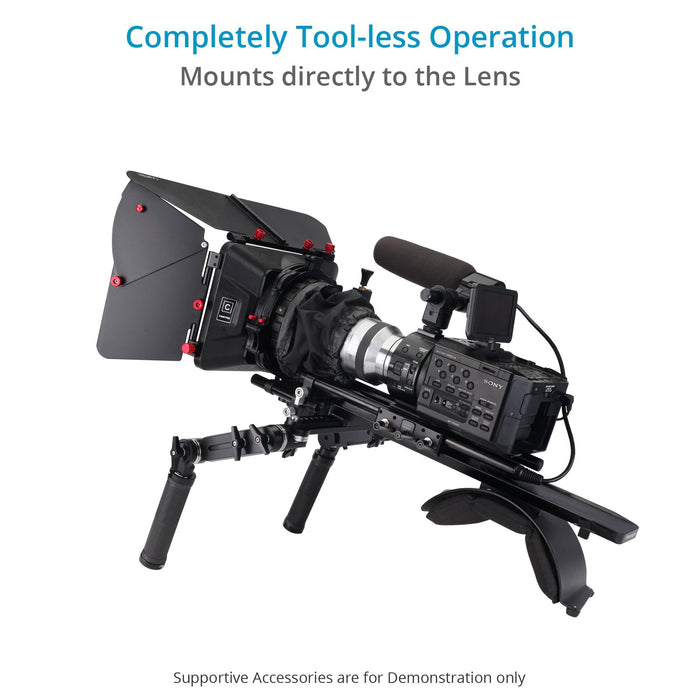

The MB-20 clamps safely and securely to the front of the lens, creating a light-tight seal.

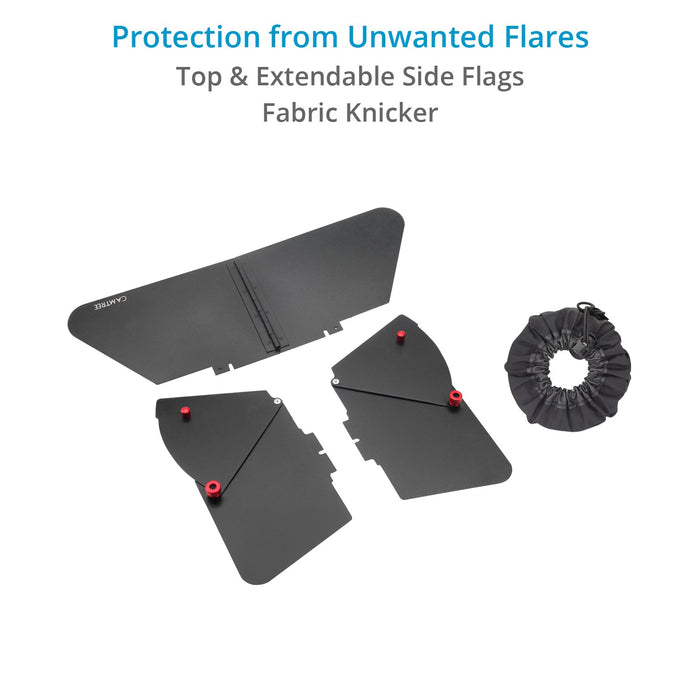

The Fabric Donut or Fabric Knicker prevents unwanted light from hitting the lens and producing unwanted flares.
The Aluminum top flag and side barn doors give extended control over light. The top flag folds down flat to cover the front of the Matte box/hood & protect your lens from any debris, dirt or dust on set

01.

EASY ROD MOUNT
The 15mm Rod Adapter allows quick and easy mounting on 15mm rod support camera rigs. The swing-away bracket features height adjustment up to 3 cm increasing compatibility of Mattebox to adapt different camera lenses.

CAMTREE MB-20 Swing Away wide angle Matte Box

IN-ACTION VIDEO

SPECIFICATIONS

Construction

  Sunshade : Strong Plastic - (Polyamide Resin)
  Flags, Swing away bracket : aluminum
  Knickers : Black Fabric

Matte box Outer Diameter

  105mm

Matte box Dimensions

  22.5 x 15.5 x 19.5 cms (l x w x h)

Depth

  7cm

Aspect Ratio

  16:9

Height Adjustment

  3cm

Knickers length

  4inch

Filter Holders

  Two 4x4". One is 180 degree rotatable & other is is static

Top Flag Dimensions

  19 x 12.5 cms (Folded)
  38 x 12.5 cms (Open)/span>

Side Flag Dimensions

  15.5 x 11.7 cms (Folded)
  2.5 x 11.7 cms (Open)

Weight of Product (without packing)

  1 kg / 2.2 lb

IN THE BOX

MB-20 Swing Away Matte Box
French Flag - Side Flags
1x 4x4 rotating filter holder
1x 4x4 non-rotating filter holder
Knicker

USER MANUAL

  CAMTREE-MB-20 Swing Away wide angle Matte Box

Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products
Customer Reviews
5.0 Based on 4 Reviews
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
MD
06/05/2021
michael d.
Happy about it. Professionally made.

Professionally built to handle most cinema lenses.

CAMTREE MB-20 Swing Away wide angle Matte Box
Was this helpful?  0    0
JD
01/16/2020
Jeremy D.
probably be buying another one

Very nice matte box. Everything works great on it. I will probably be buying another one for my other rig.

CAMTREE MB-20 Swing Away wide angle Matte Box
Was this helpful?  0    0
L
11/14/2019
lockwoodtv
GREAT VALUE!!

Work great as promised. Good value, Sturdy, Looks nice and does the job of the $1000+ competitors.

CAMTREE MB-20 Swing Away wide angle Matte Box
Was this helpful?  0    0
WM
06/03/2019
William M.
Worth the money

The quality of material is very nice. This works great with my Rokinon cinema lenses and smallrig with C100mkii

CAMTREE MB-20 Swing Away wide angle Matte Box
Was this helpful?  0    0

Q&A

Ask a Question



  • Do the C-MB-20 matte box filter trays support 4mm thick filters?

    Yes, the Proaim Matte Box (C-MB-20) filter trays support 4mm thick filters.

  • What is the outer diameter of matte box ?

    The outer diameter of the matte box is 105mm.

  • Which lenses it will work with ?

    It will work with all photo & cinema standard and wide angle lenses upto 28mm.

  • Will it work with gh4 camera ?

    Yes, this matte box will work with GH4 camera with any photo & cinema standard and wide angle lenses upto 28mm.

  • Will it work with Sigma 18-50mm f/2.8 and Canon EF-S 18-200mm lens ?

    Yes, this matte box will work with Sigma 18-50mm f/2.8 lens.

  • What is the maximum lens dia, the knickers will fit to ?

    The knickers will fit to the lenses with upto 105mm diameter.

  • Will it work with 5d/7d with battery grip?

    This mattebox cannot be used with Canon 5d/7d with battery grip as such but we have the option of height riser incase required.

  • What is the material of matte box?

    The mattebox hood is made up of Strong Plastic - (Polyamide Resin). Flags & height adjuster are aluminum made and knicker is fabric.

  • Which filters I can use with it?

    You can use 4x4 filters with this mattebox.

  • Are the filter trays rotating?

    This matte box has two filter trays. One is rotatable at 180 degrees and the other is static..

  • Is it returnable for a full refund if it doesn't meet my expectations upon delivery?

    Yes, absolutely. We always backup our sales. In case, you don't like the product, we take it back within 30 days and you get a 100% refund.

  • What is the warranty ?

    We provide 1 year warranty from the date of purchase. Items which are covered by the warranty period will be replaced at no cost to the customer. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
