01.
PROFESSIONAL. STRONG. LIGHT. SMOOTH.

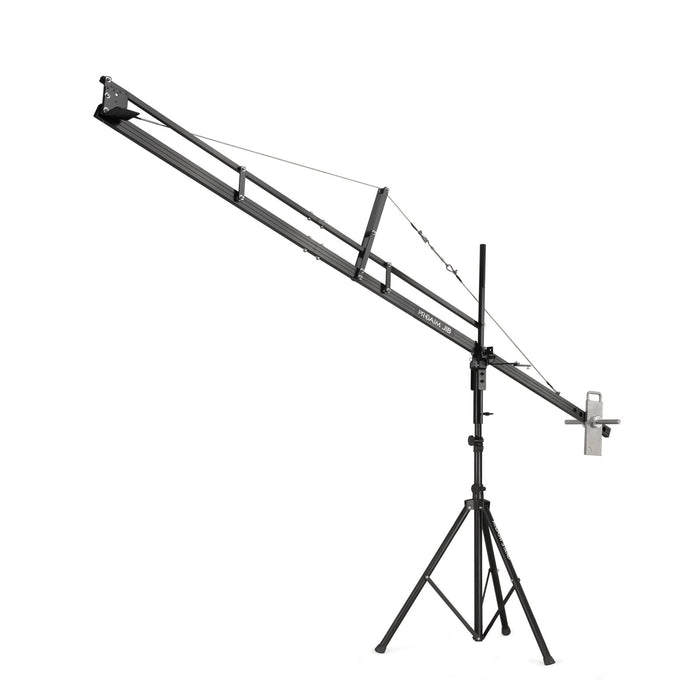

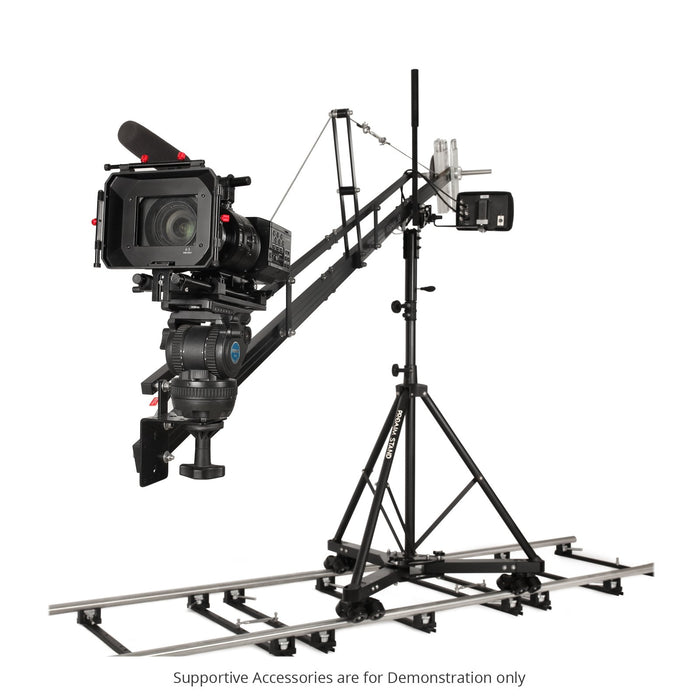

Proaim 12ft Camera Jib Arm is designed for videographers and filmmakers who need a lightweight and ultra-portable Crane system.

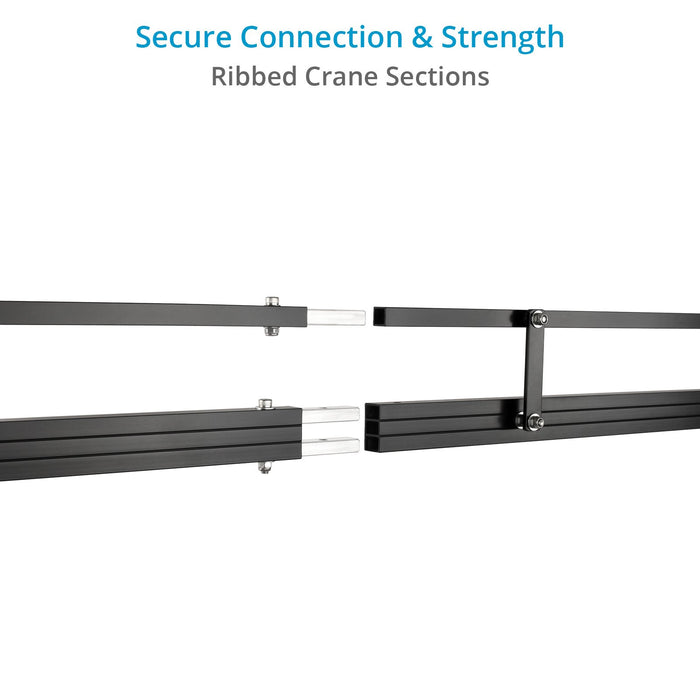

The Jib has many great features such as a two-arm design, camera mount tilt control, ribbed jib sections & monitor mounting - making it one of the most value for money jib.

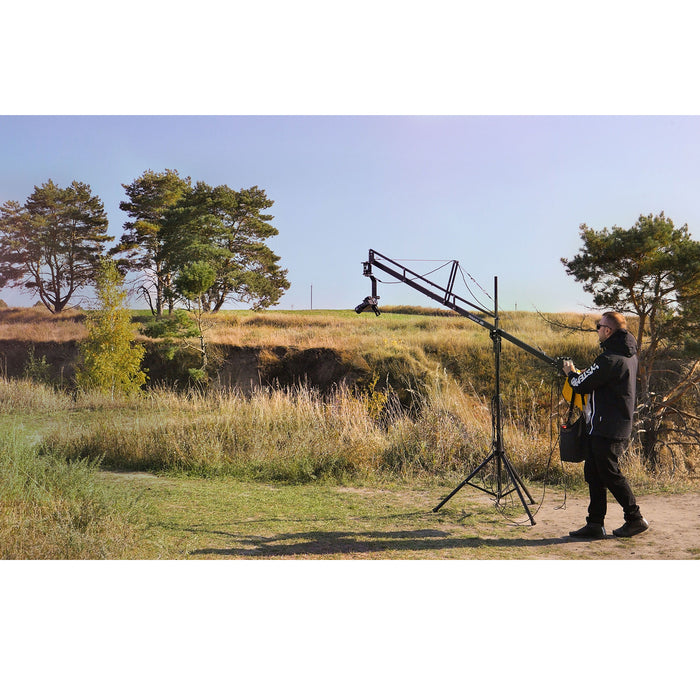

It allows capturing smooth, dynamic sweeping pans and camera rise.
High strength Aluminum construction with unbeatable stability holds camera setups up to 8kg / 17.6lb.
USER-FRIENDLY & AFFORDABLE JIB FOR INDOOR/OUTDOOR USE
High Build Quality. Simple yet Powerful.
02.
EXPERTLY CRAFTED JIB

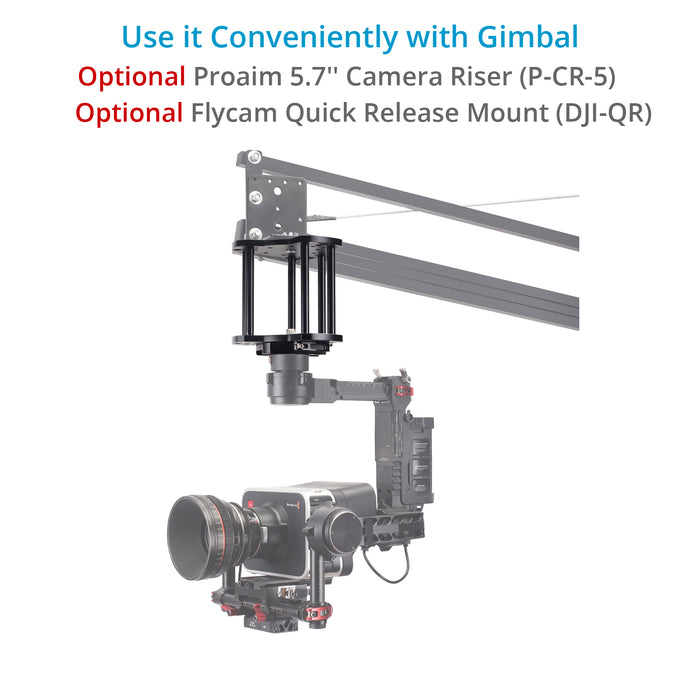

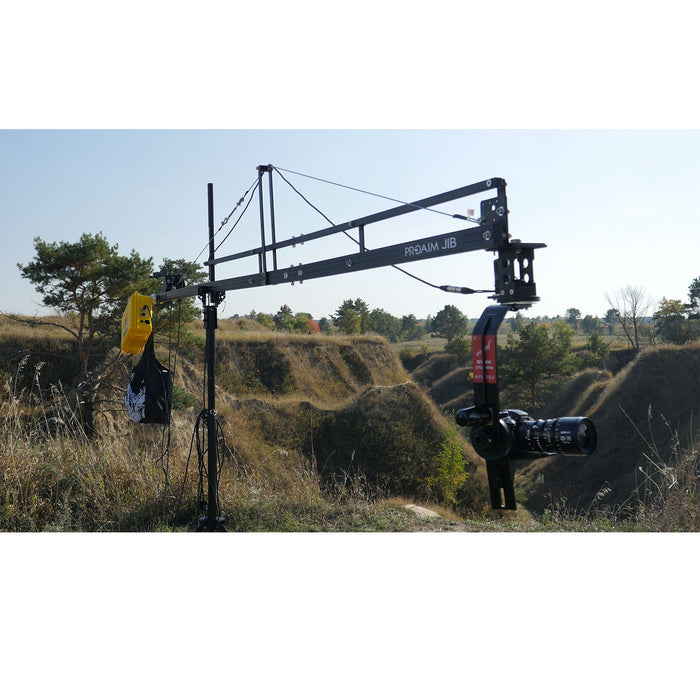

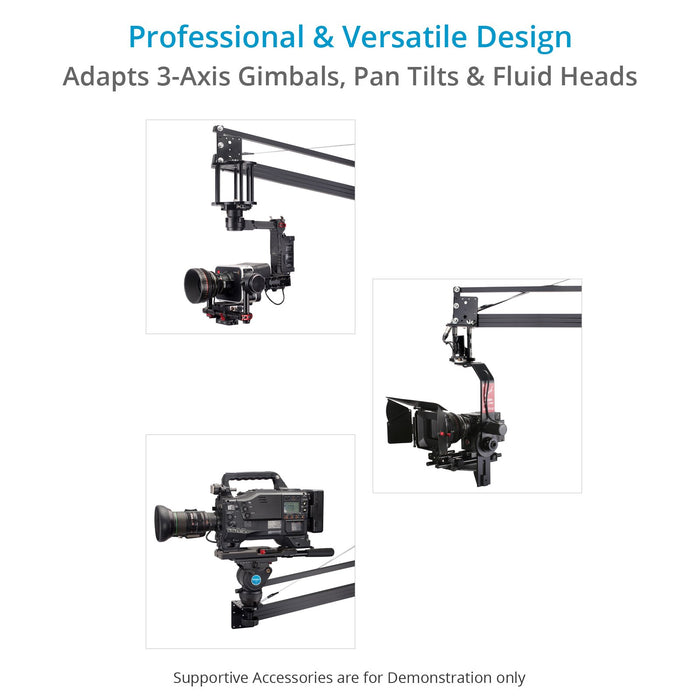

The Jib has Universal front mounting to adapt Pan Tilt Heads and 3-Axis Gimbal Stabilizers.
Two Arm Design offers enhanced strength & stability to the entire jib setup.
The Jib comes with a 1/4"-20 hole allowing for Quick LCD monitor attachment.
Camera Mount Tilt Control offers both Auto tilt mode and a Manual tilt mode with a control handle.

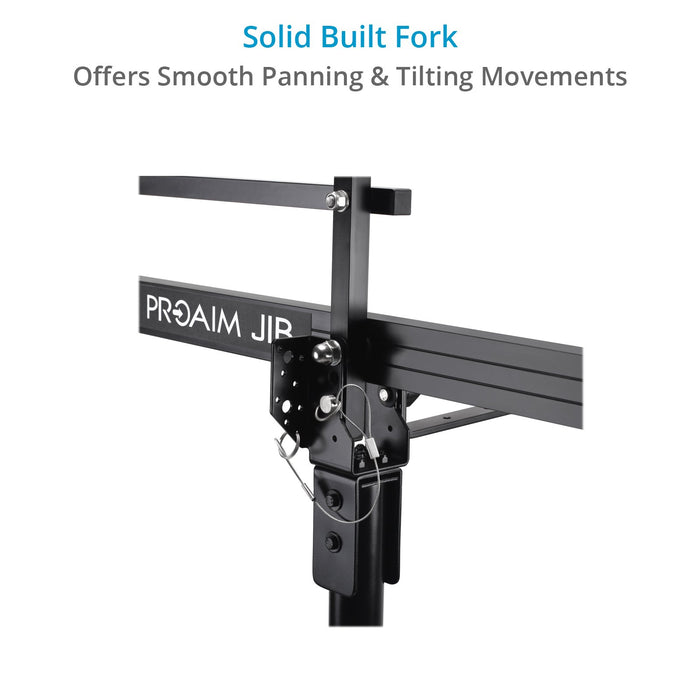

Central Fork with thrust roller bearings absorbs shock loads for smooth jerk free jib movements.
Hi-tensile weight closers keep the weight discs intact for perfect balance.
03.
MOST AFFORDABLE JIB SOLUTION
For rigs under 8kg / 17.6lb, there isn't a better crane for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 12ft Jib eliminates that concern by providing an excellent jib solution at an economical price.
04.
SOLID FOUNDATION FOR THE JIB

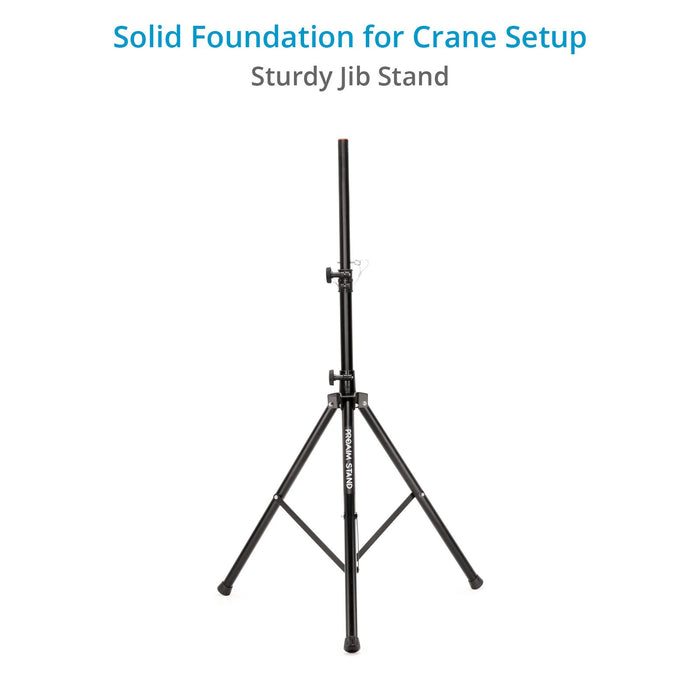

This excellent Jib Stand is sturdy enough to support the Crane when it's fully loaded and weighed.
It combines high-quality materials, technological expertise and superior design to provide the ideal support needed to take the perfect shots.
The Jib Stand supports an incredible payload of up to 90kg / 200lb and is highly stable in use.
05.
SIMPLIFIED TRANSPORT

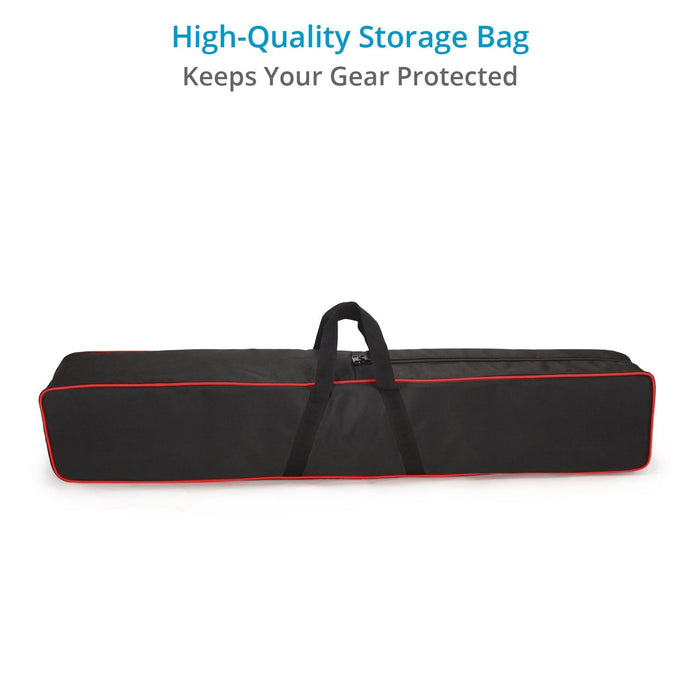

The Complete Crane System fits in bags for easy storage. These compact bags are easy to carry with you to different sets and locations.
IN-ACTION VIDEO
SPECIFICATIONS
12' JIB
Construction
Jib Arm: High-grade CNC Aluminum

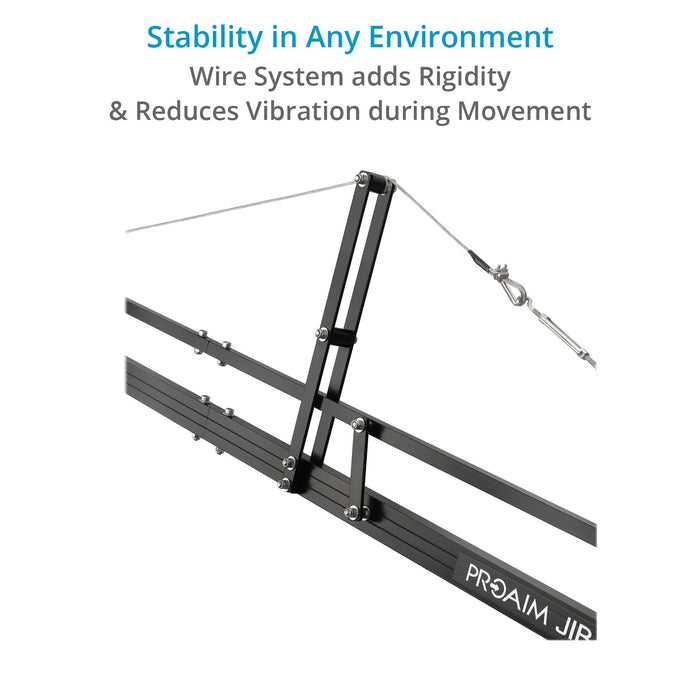

Cable System: Stainless Steel
Weight Holder Rod
Mild Steel
Weight Closures
Mild Steel
Load Capacity
up to 8kg / 17.6lb
Balancing
The jib has a varying weight ratio depending on the length you have chosen.

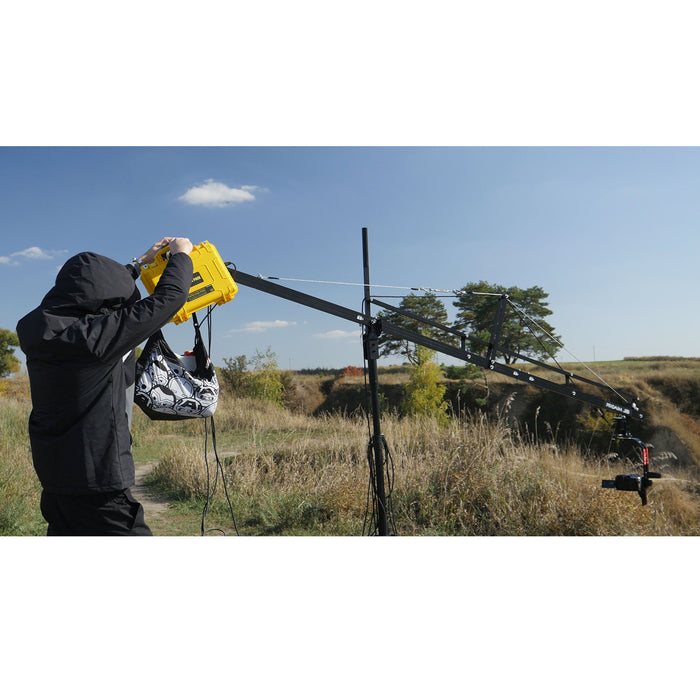

The 12ft jib arm itself balances at about 4kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 2 and you will know how much weight to buy.
The 9ft jib arm itself balances at about 3kg. Just multiply the weight, of the additional items you will put on the end of the arm, by 3 and you will know how much weight to buy.
Buy a few extras in case you add other accessories.
Jib Length
Height Range from ground level: 12ft when stand height adjusted at 5.5ft
Variable shooting length: 9ft
Jib Arm
Shape: Rectangle
No. of Sections: 3
Length: 3.5' each
Jib Section Jointers: Silver Aluminum
Tilt Lock
No
Pan Lock
No

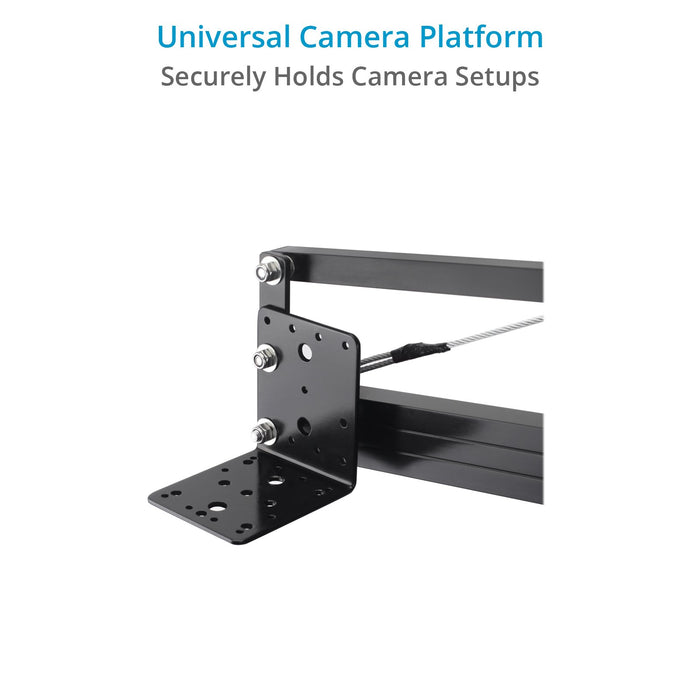

Camera Platform
Camera Mount Plate: Rectangle (10.5 x 9cm)
Levelling: By Stress Cable (with Adjustable Steel Hook)
Camera Platform Tilt
up to 180 degree
Weight Holder Rod
Length: 355mm
Diameter: 25mm
Weight Closures: 2 pieces
LCD Mounting
Yes
Weight
14kg / 31lb
JIB STAND
Construction
High-grade Mild Steel, Powder-coated
Load Capacity
up to 90 kg / 198 lb
Length
Maximum: 80"
Minimum: 44"
Collapsible Height
46"
Diameter of Stand Tubes
33mm
Base Spread
32"- 48"
Safety Pin
Yes
Weight
4.5 kg / 10 lb
IN THE BOX
Proaim 12ft Jib Arm
Jib Stand (P-JS)
LCD Mounting Arm
Storage Bag
USER MANUAL
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
The Proaim 12ft crane is an excellent product, robust and easy to assemble, with professional features. I advise.
We were hired to shoot an Auto Mechanic short video for one of our customer YouTube Channel. There were mostly shoots from above, focusing on work over the engine bay. We used this Jib Arm for most of the moving shoots due to its sturdiness and precision. The final edit came out excellent and our client was very satisfied with the job. Now we have a new contract for five more videos thanks to the use of the right tools (and a good, talented eye of course).
Perfect and solid, unfortunately, I was unable to enjoy it having suffered the theft a few days after the purchase. As soon as I have the opportunity, I will try to buy it back.
This is a quality Jib... it is very sturdy and comes with a separate bag for the stand and the jib.
I recently purchased this 12ft Jib Arm. The build quality is excellent and allows me to get the shots I need. Cinematography is a hobby of mine currently, so I do not have a ton of cash to spend on gear, and this piece of equipment is worth every penny of its price. I have been able to get some really nice shots using it, that just would not be possible otherwise.
Q&A
Ask a Question-
\"I wanted to get a gimbal attachment for RS2 and the Ronin M that attaches to the Proaim 12ft jib.
For mounting the Ronin RS2 with the Proaim 12ft Jib, you will have to use the below two plates:
DJI-QR: https://business.proaim.be/products/flycam-quick-release-mount-for-ronin-m-mx
P-QRG: https://business.proaim.be/products/proaim-quick-release-plate-for-hand-held-gimbals
For mounting the Ronin M with the Proaim 12ft Jib, you will have to use the below plate:
DJI-QR: https://business.proaim.be/products/flycam-quick-release-mount-for-ronin-m-mx
