Proaim Kite-22 Wonder Package - 24.5ft Camera Jib Crane for Video Film Productions

Proaim Kite-22 Wonder Package - 24.5ft Camera Jib Crane for Video Film Productions

Gold Pan-Tilt Head, 150mm Bowl Tripod Stand & D-33 Camera Dolly

2 reviews
€2.267,00 - €2.267,00
€2.267,00
€2.267,00 - €2.267,00
€2.267,00
or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

SKU : KITE-22-WONDER

AN ALL-ROUNDER AND INDUSTRY STANDARD ROBUST CAMERA CRANE

Perfectly Meets Various Production Needs!

01.

ULTIMATE SOLUTION FOR PROFESSIONALS

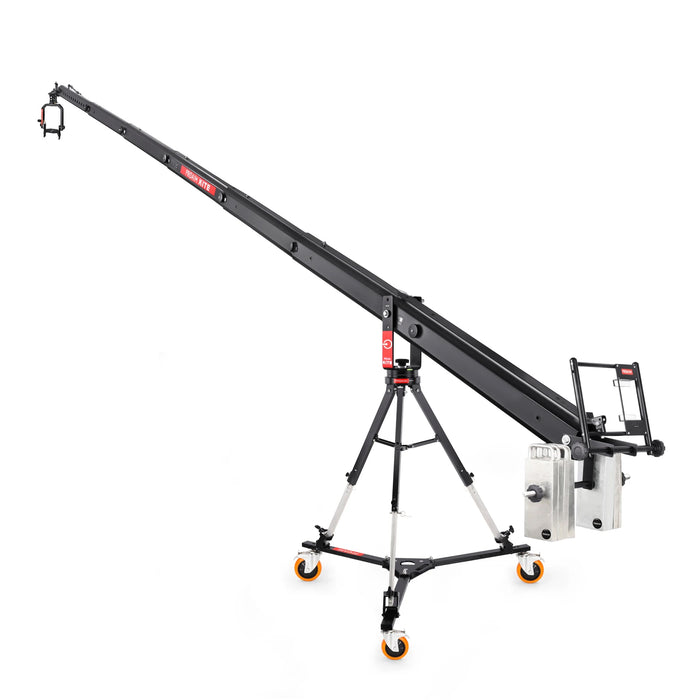

Proaim unveils Kite 22 Camera Jib Crane to let you explore your cinematic world. It will give you the whole spectrum of innovative ideas by giving various geographic scenarios & different in-studio angles.
The Kite 22 jib stabilizes your camera to create incredibly detailed, smooth and consistent shots. It is well-engineered equipment which includes a tripod stand, portable floor dolly & Dutch roll pan-tilt head.
The High-Grade Aluminum construction offers unbeatable strength and holds most camera setups.

Proaim Kite-22 Wonder Package - 24.5ft Camera Jib Crane for Video Film Productions
Proaim Kite-22 Wonder Package - 24.5ft Camera Jib Crane for Video Film Productions

02.

WELL DESIGNED ARM SECTIONS

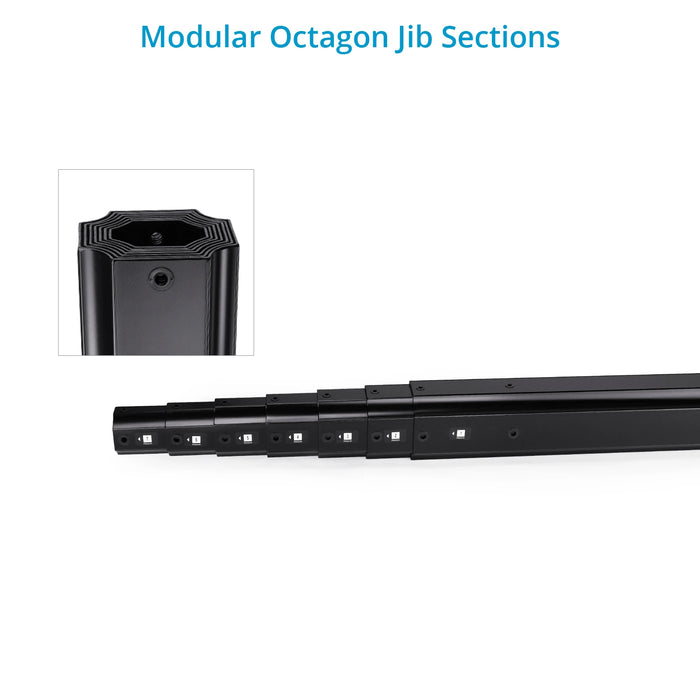

The modular octagonal-shaped arm sections reinforce the sturdiness of the Kite-22ft Camera jib crane.
It is divided into seven sections, each measuring 4' in length, overlapping by up to 1' for varied lengths.

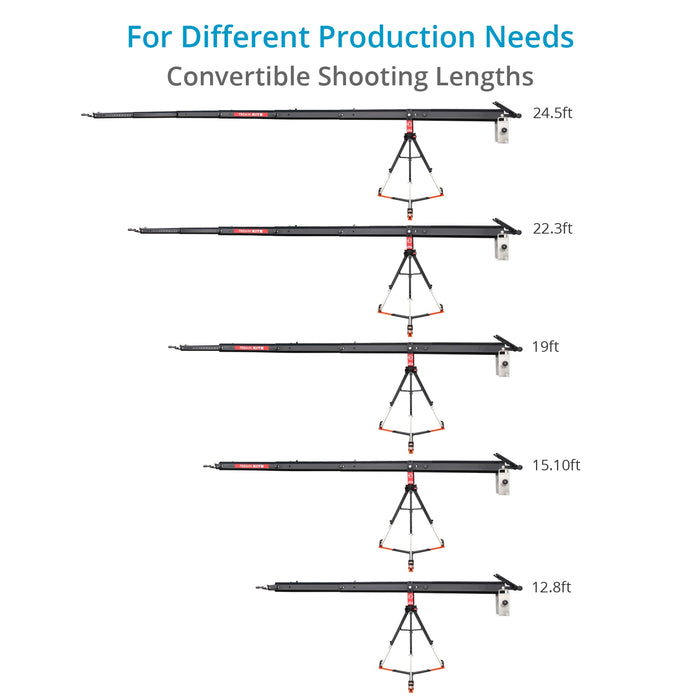

Arm length is adjustable, ranging from 12.8 ft. to 24.5 ft. (24.5ft, 22.3ft, 19ft, 15.10ft & 12.8ft) to meet any professional demands.
Each section is pulled from the previous section, so you can store unused sections in the tail as ballast weight and lighten your counterweight demand.

03.

SOLID FOUNDATION WITH MOBILITY

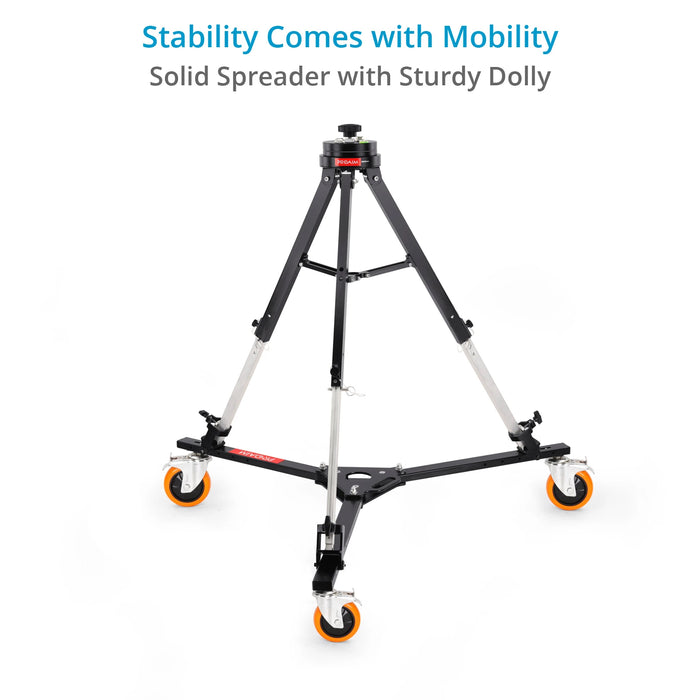

Proaim Kite 22 Wonder package comes with LW-150 Heavy Duty Jib Stand to provide excellent stability to your heavy camera setups.
It combines high-quality materials, technological expertise and superior design to provide the ideal support needed to take the perfect shots.
The Tripod supports an incredible payload of up to 250kg / 551lb and is highly stable in use.
The Kite 22 package includes a D-33 Pro Dolly to add mobility to the crane. It's a compact and versatile pro video dolly.
The Locks on the wheels ensure static jerk free shots & easy assembling.

Proaim Kite-22 Wonder Package - 24.5ft Camera Jib Crane for Video Film Productions
Proaim Kite-22 Wonder Package - 24.5ft Camera Jib Crane for Video Film Productions

04.

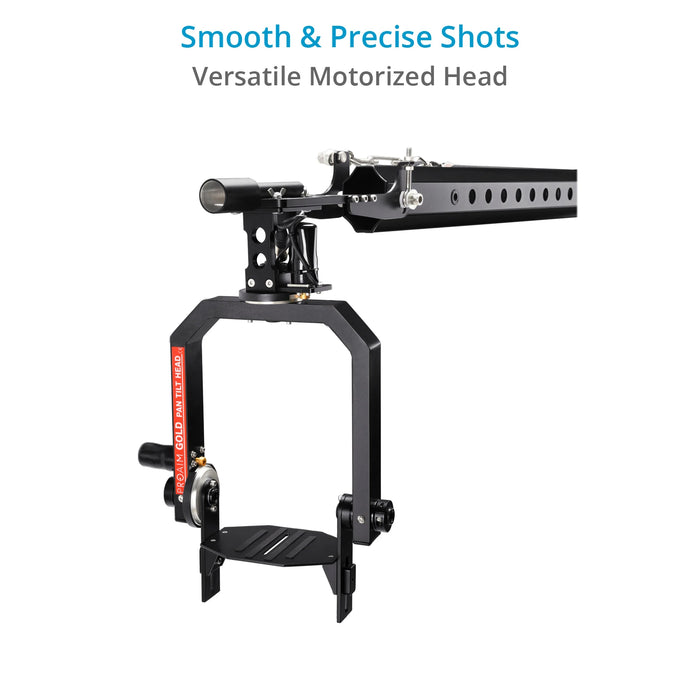

GOLD PAN TILT HEAD
Proaim Gold Pan tilt offers complete 360-degree pan & tilt movements while keeping your camera safe and secure.
Two coreless high torque motors provide inaudible movements and a payload capacity of 7.5kg/16.5lb.
The high strength brass & aluminum gears are engineered to withstand long hours of function and minimal wear and tear.
Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot as you can reverse the panning & tilting direction as & when required.
Damping control prevents the head from stopping with a jerk enabling you to achieve smooth endings.

05.

SIMPLIFIED CARRYING

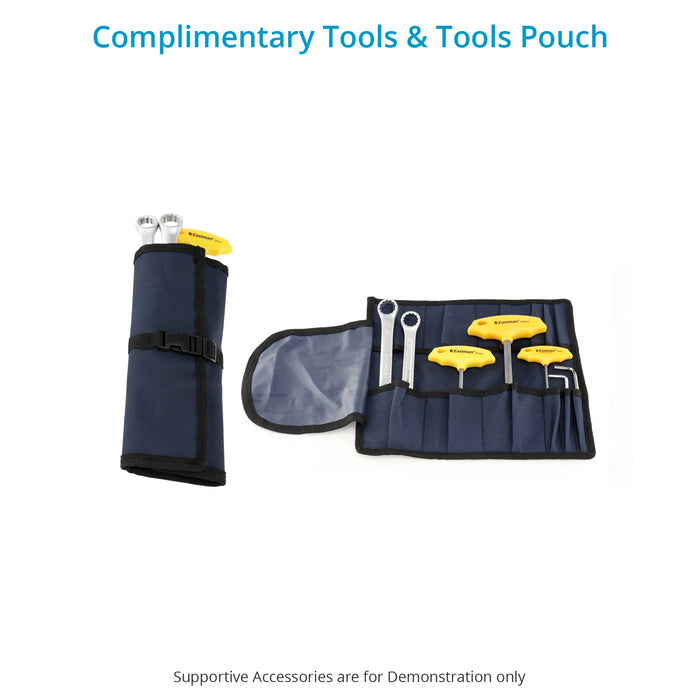

The tool/accessory roll pouch provides rapid access to various tools such as Allen keys or wrenches. It has ten pockets to neatly organize multiple hand tools so you can work quickly and efficiently.

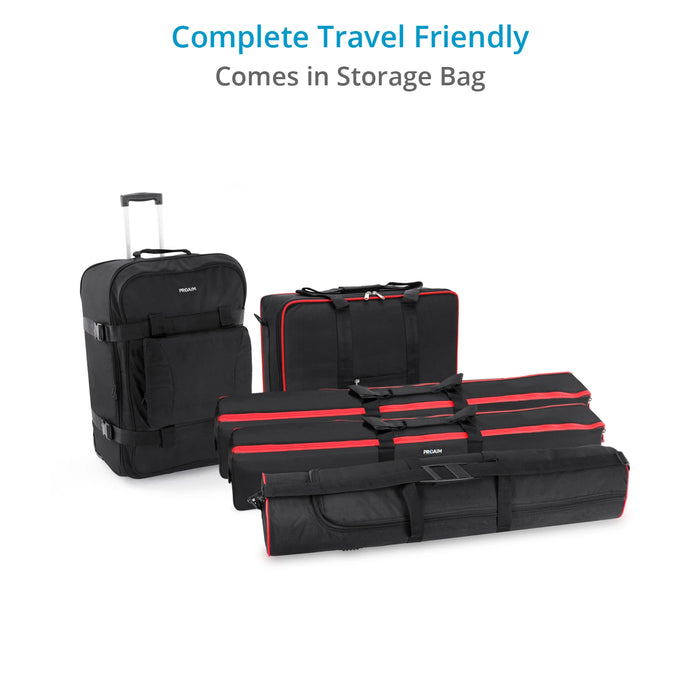

The complete Crane Package fits in customized storage cases to ensure full protection. These storage cases are easy to carry with you to different sets and locations.

Proaim Kite-22 Wonder Package - 24.5ft Camera Jib Crane for Video Film Productions

IN-ACTION VIDEOS

JIB COMPARISON

FEATURES
PROAIM KITE-22 JIB
OTHER VIDEO JIBS
WeightLightweight Heavy Bulky
Finish Hard Black Powder Coated for Lifetime use Powder Coated
Shape Octagonal (Re-enforced engineering for Triple Strength) Rectangular
TelescopicYes No (fits into very heavy 3' x 3' x 4.5')
AssemblyWithin 15 minutesTakes more than 30 minutes for setup
Material High Grade Aluminum Aluminum
Stand150mm Tripod Stand IncludedOthers recommend photography Tripod Stand that is not recommended for jib
SpreaderSpreader Included for high stabilityNot Included
Pan Tilt HeadGold Pan Tilt Head Included Not Included
PackingLightweight High Impact Professional Hard case Packing Heavy Bulky packing made out of board and aluminum and has equal weight as of the product

SPECIFICATIONS

TELESCOPIC CAMERA JIB

Jib Arm Material

  High Grade Aluminum HE30

Jib Arm Shape

  Octagonal

Height from Ground

  19ft / 5.8m

Jib Arm Thickness

  3mm

Jib Crane Length

  24.5ft / 7.5m

Jib each Arm length

  4ft

Jib Arm Dimensions

Jib Arm Octagonal Tube Outer DiameterInner Diameter
Ist Section(weight section)164mm156mm
2nd Section 154mm146mm
3rd Section 144mm136mm
4th Section134mm 126mm
5th Section124mm116mm
6th Section 114mm 106mm
7th Section (Top Section)104mm96mm

Height Range

  Height of Jib Arm while Your Stand Adjusted at Maximum height of 4ft:19ft high at 24.5ft length
  16.6ft high at 22.3ft length
  14.3ft high at 19ft length
  12.2ft high at 15.10ft length
  10ft high at 12.8ft length

Balancing Chart

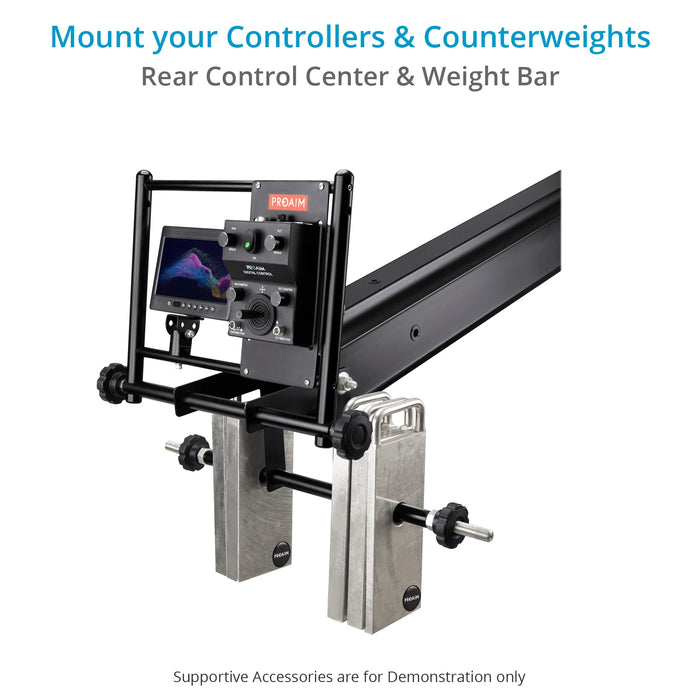

  Add Counter Weights in the rear section of Jib according to Camera and Pan Tilt Head weight as per this chart :

Self Balancing When 2.2lbs weight is on the Head Plate

24.5ft jib arm balances at about 121.5lbs.

24.5ft arm balances at around 133lbs.

22.3ft arm balances at about 119lbs.

22.3ft arm balances at around 128lbs.

19ft arm balances at about 116lbs.

19ft arm balances at around 122lbs.

15.10ft arm balances at about 114lbs.

15.10ft arm balances at around 117lbs.

12.8ft arm balances at about 112lbs.

12.8ft arm balances at around 115lbs.

Crane Pan Lock

  Yes

Crane Tilt Lock

  No

Finish

  Black Powder Coated

Coupling Jib Arm Sections

  A union coupling design of Jib Arm is done by washer and Steel bolt and shank with external clamps as well as Pin Lock for double locking System

Jib Arm Break downs to

  7 Sections of 4ft each

Camera Platform Leveling

  By Control Cable

Stress cable

  High carbon steel with electro galvanized 4mm tested wire at 800kg

Multiple Alignment

  Multiple user friendly alignment of Stress Cable is provided For making Jib Stand straight without any curve

Carrying Case size

  51 inches

Jib Crane Weight

  30 kg / 66 lb

Max Camera Package Load Capacity(including Pan Tilt Head)

  20 kg / 45 lb

PAN TILT HEAD

Pan-Tilt Material

  High Grade Aluminum

Max Camera Package Load Capacity

  7.5 kg /16.5 lb

Pan movement

  360°

Tilt movement

  360°

Speed

  Variable-controlled speed from 6 degree / sec (low speed) to 51 degree / sec (high speed)
  Slowest Speed : 2 minutes
  Highest Speed : 7 seconds

Motors

  Two high torque, coreless DC motors that rotates (pans) and tilts the head 360 degrees

Gears

  2- Brass Small Gears (Dia- 13mm)
  2- Aluminium Big Gear (Dia-88mm)

Minimum height of head

  18 inches

Maximum height of head

23 inches

AC Adapter input

  AC 100 - 240V ; output - DC 12V -2A

Cable Length

  9 meter

Cable Connector

  4-Pin XLR

Battery Cable

  3 Meter long

Weight of Pan Tilt head

  3.9 kg / 8.59 lb

Bag Dimensions

  51 X 42 X 22 cm

JOYSTICK CONTROLLER

Joystick Controller

  2-Axis

Connectors

  2x 4-Pin XLR male connectors

Pan Direction

  Yes

Weight of Joystick box

  0.81 kg / 1.78 lb

TRIPOD STAND(LW-150)

Material

  Solid Aluminum

Hub Assembly Material

  High Grade Aluminum HE30

Bowl Mount

  150mm

Bowl Thickness

  30.8mm

Stand Minimum Height With Bowl

  2ft 2 inch

Stand Maximum Height With Bowl

  3ft 2 inch

Distance from Center

  22 inch

Weight of Stand

  6.7 kg / 14.7 lb

Weight of Spreader

  1.8 kg / 3.9 lb

Spreader

  Max Opening : 24 inch
  Min Opening : 15 inch

Length of Hard Case

  28.7 inch

Weighing Capacity

  250 kg / 551 lb

D-33 DOLLY

Maximum Load capacity

  400 kg / 881lb

Material

  MS powder coated

Bolts

  Steel bolts with washers

Wheels Diameter

  148.7mm

Wheels Thickness

  49.40mm

Wheel Material

  Polyurethane

Central Distance

  72cm

Dimensions

  Folded (L x W x H) 84 x 28 x 22 cm
  Doorway Width - 144cm

Height From Ground

  9 inch

Weight of Dolly

  15.2 kg / 33.5 lb

Dolly Type

  Three leg Floor dolly

Wheel Lock

  Yes

PACKING INFO

Product Volumetric Weight (with packing)

Case 1 = 16kg / 35lb
Case 2 = 12kg / 28lb
Case 3 = 46kg / 102lb
Case 4 = 13kg / 30lb
Case 5 = 10kg / 22lb
Case 6= 15kg / 35lb

Product Gross Weight (with packing)

Case 1 = 22kg / 51lb
Case 2 = 17kg / 39lb
Case 3 = 30kg / 66lb
Case 4 = 14kg / 31lb
Case 5 = 8kg / 18lb
Case 6= 17kg / 37lb

IN THE BOX

  Proaim Kite-22 Video Camera Jib Crane with Accessories
  Gold Pan and Tilt Head with Accessories (PT-GOLD)
  Proaim 150mm bowl Jib Stand with spreader (LW-150)
  D-33 DOLLY (D-33)
  Tools and Tool Pouch/Wrap- Complimentary
  Proaim Customized Storage cases

USER MANUAL

  Proaim Kite-22 Wonder Package

Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products
Customer Reviews
4.5 Based on 2 Reviews
5 ★
50%
1
4 ★
50%
1
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
M
03/11/2023
Mike
India India

Well worth the value!

Purchased this to add value to our livestream product, and we are highly satisfied!

Proaim Kite-22 Wonder Package - 24.5ft Camera Jib Crane for Video Film Productions
Was this helpful?  0    0
MS
12/21/2021
Michael S.
Germany Germany

good

surprised of the quality at this price level. works good. cannot compare to market leader products because of lack of experience. This is the first crane we have our hands on.

Proaim Kite-22 Wonder Package - 24.5ft Camera Jib Crane for Video Film Productions
Was this helpful?  0    0

Q&A

Ask a Question



  • Which size of Tripod legs can fit in the D-33 dolly?

    The tripods with up to 48mm diameter legs can be used with the Proaim D-33 Portable Camera Tripod Dolly.

  • How to assemble Kite-22 crane, i am very confused ?

    "Here is the assembling video of the Kite 22 Crane Jib:
    https://www.dropbox.com/s/ajrtm7ywfsr7f5v/Kite-22-crane-assembly-Final.mp4?dl=0"

  • Hello, is screen includes in the crane packages ?

    The Proaim Camera Crane Packages does not include the monitors or screens.
