01.
Secure Mounting

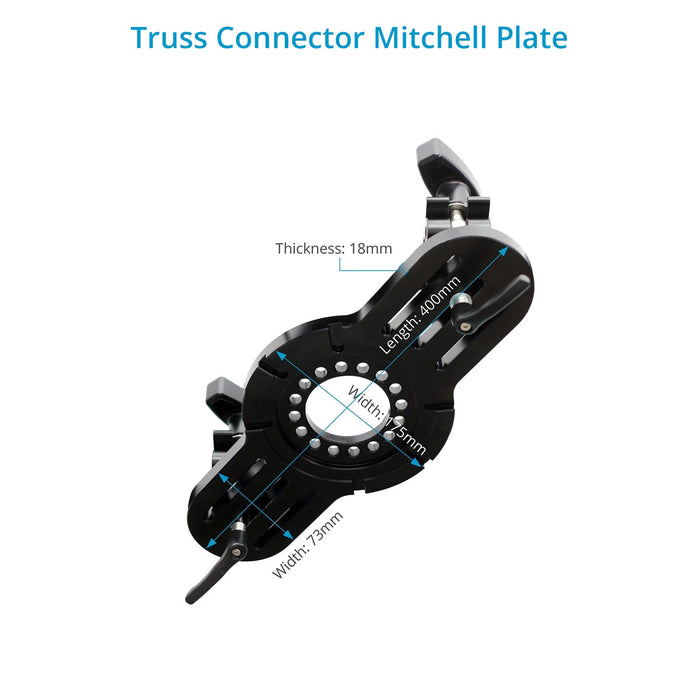

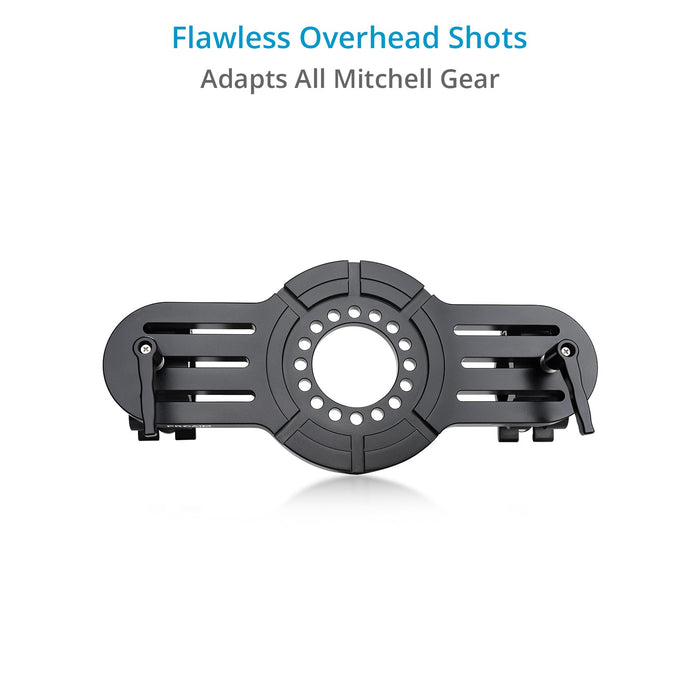

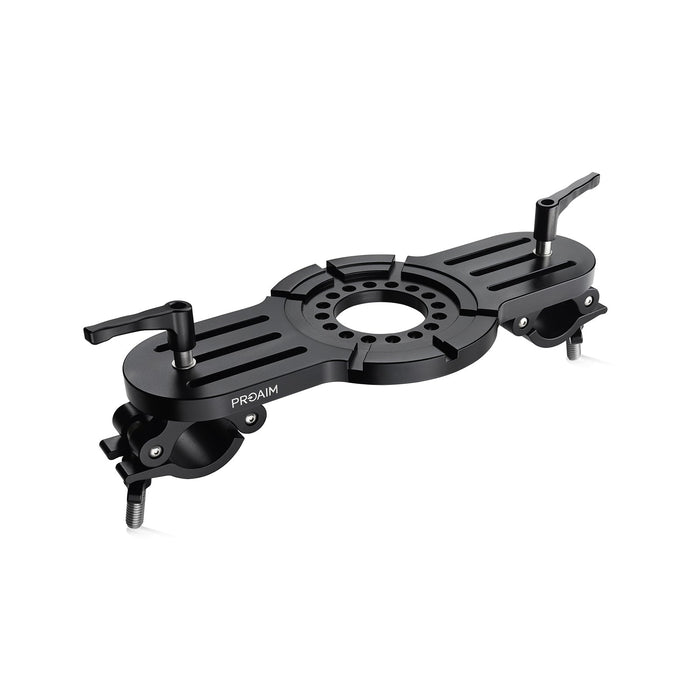

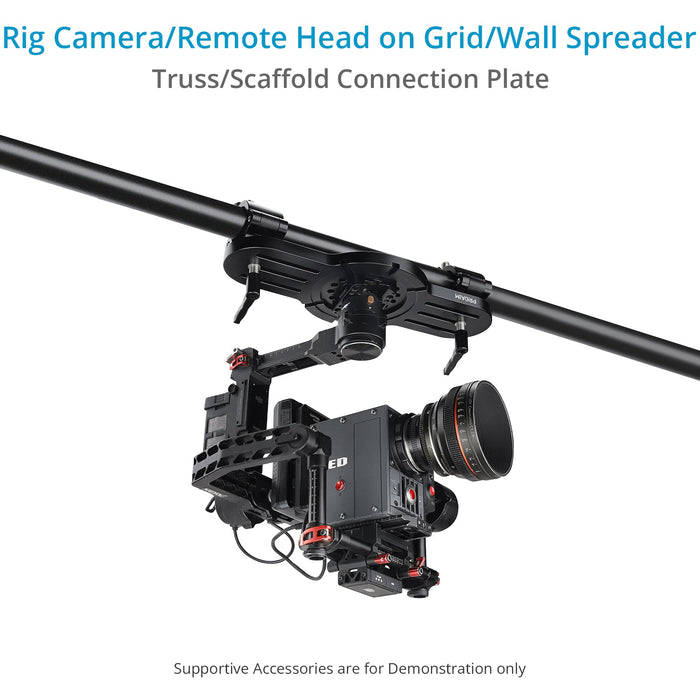

Securely mount your cameras and remote heads on any grid of poles, like on a wall spreader, using the oval-shaped crossbar connection plate with Mitchell Configuration from Proaim.
It supports an enormous load capacity of 55kg/ 110lb so to accommodate heavier setups effortlessly.
Its High-Grade CNC Aluminum construction makes the plate sturdy yet lightweight, thus boosting rigidity.
02.
Flexible & Secure

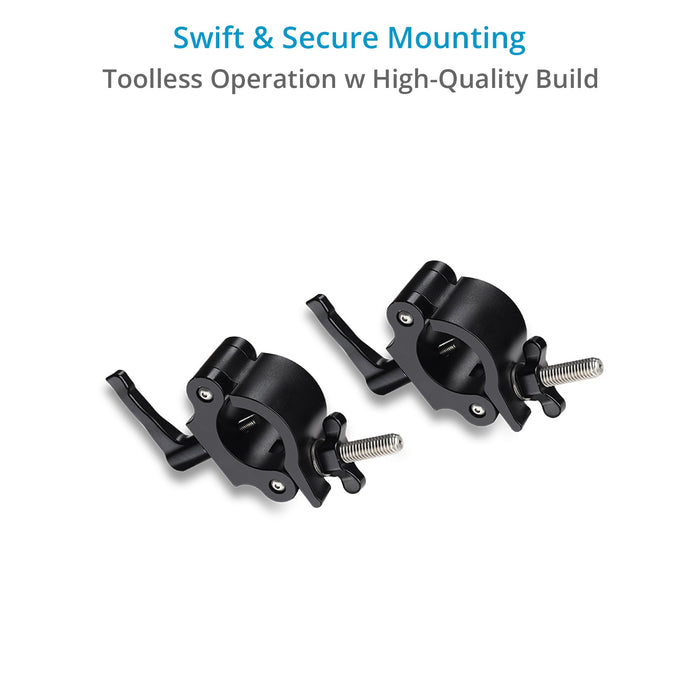

The truss plate is flexible owing to the adjustable clamps that ensure easy mounting & complete tool-free operation.

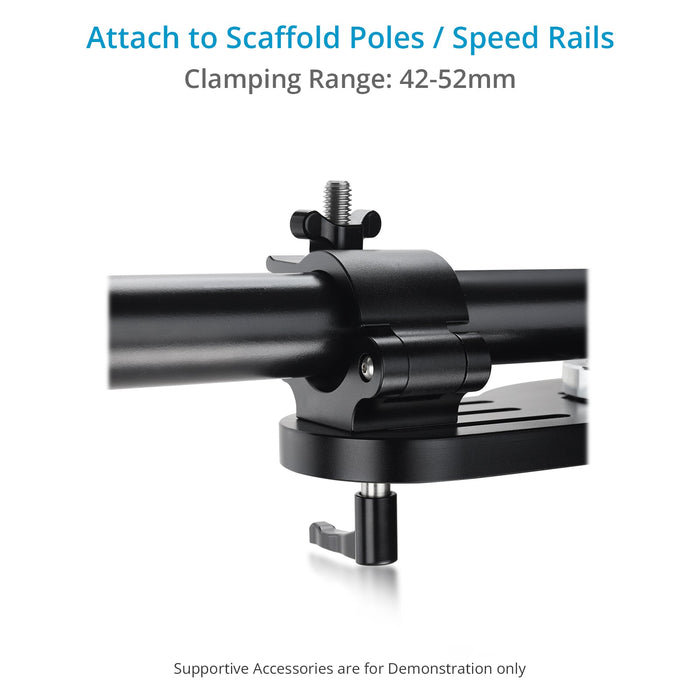

These rugged clamps get firmly attached to any 42mm to 52mm scaffold pole/speed rail and come with secure knobs to tighten onto a pole.
The Ratchet knob on the truss plate secures your clamp attachment.
Plus, you can even swivel the clamp a full 360 degrees, which gives you more options for getting the perfect setup.
High-Grade CNC Aluminum
up to 50kg / 110lb
42mm - 52mm
Yes
360 Degrees
2.6kg / 5.7lb
3.2kg / 7lb
Proaim Truss Connection Plate
| Guaranteed Fast Delivery |
 | Quick and Efficient |
| Easy Returns |
| 1-Year Warranty |
Can it handle heavy remote head setups?
Yes, it is built to support heavier camera and remote head configurations.
Does it require tools for installation?
No, it offers a fully tool-free clamp mounting system.
What pipe sizes are compatible with the clamps?
Fits scaffold poles/speed rails from 42 mm to 52 mm diameter.
What mounting standard does it use?
Features an industry-standard Mitchell mount.
What is the load capacity of the plate?
Supports up to 55 kg / 110 lb of camera and rig setups.
I need to mount my tripod head in a lightening truss. I am currently looking at the Proaim Truss/Scaffold Connection plates. But I am kind of lost regarding how to connect the actual plate to the tripod head. My tripod head is an ACE xl from the brand satchlet ?
Yes, you can use this Truss/Scaffold Connection Plates euro with tripod head which is 75 mm ball-based head
You will also need Proaim Camera Bowl Riser Adapter (Euro / Elemac Base) (BA-266-00) and 75 mm conversion ring.
