01.
PROFESSIONAL. STRONG. LIGHT. SMOOTH.

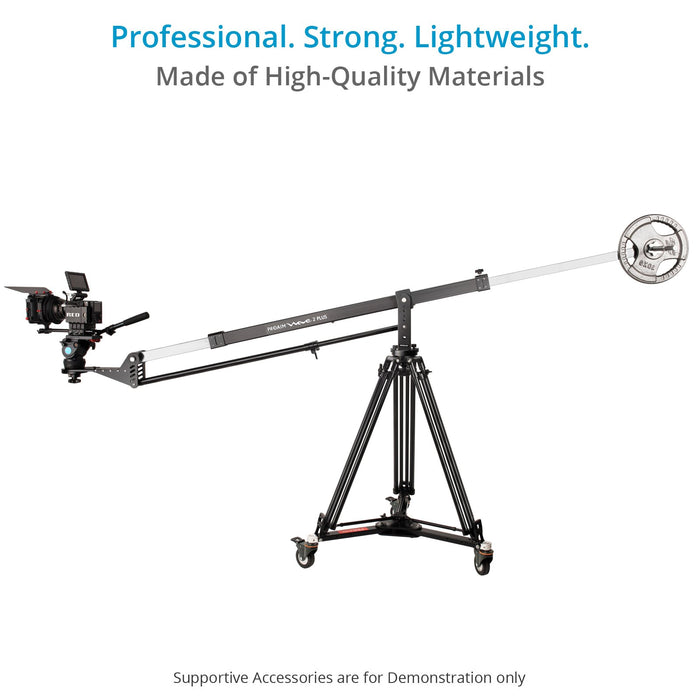

Proaim 10 ' Wave-2 Plus Video Jib Crane, specifically designed for indoor & outdoor video productions, is a portable filming solution for videographers and cinematographers who need a lightweight and ultra-portable Crane system.
The Jib has many great features such as telescopic design, versatile camera mount, sturdy assembly hub, panning knobs, making it one of the most value for money jib.
It allows capturing smooth, dynamic sweeping pans and camera rise.
High strength Aluminum construction with unbeatable stability holds camera setups up to 25kg / 55lb payload.
POWERFUL. SIMPLE. AFFORDABLE.
Best Travel Crane Package for Outdoor Extremes & Indoor Studio Shots!!
02.
EXPERTLY CRAFTED JIB

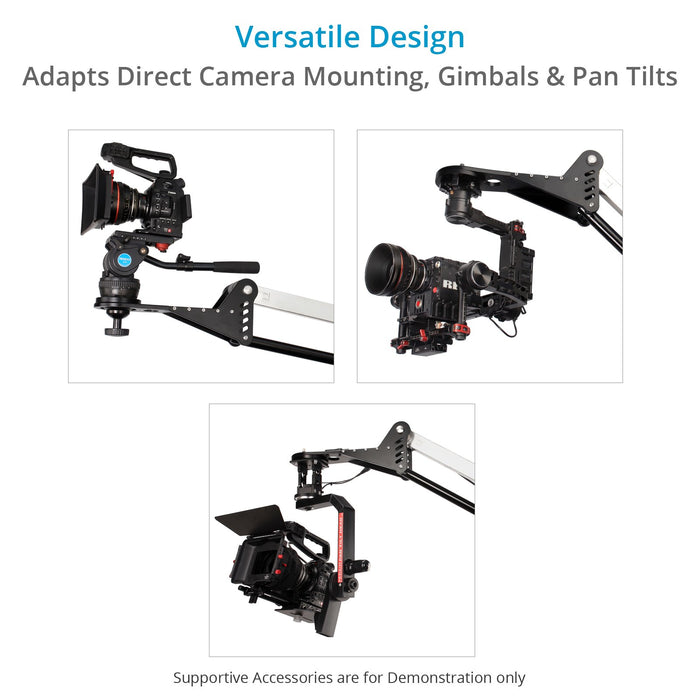

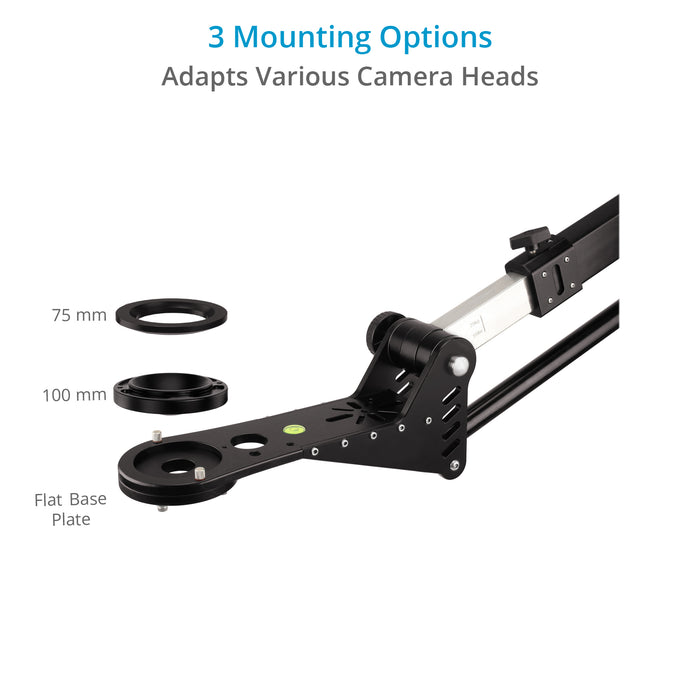

The Jib has a camera head mount that accepts 75mm/100mm fluid heads.

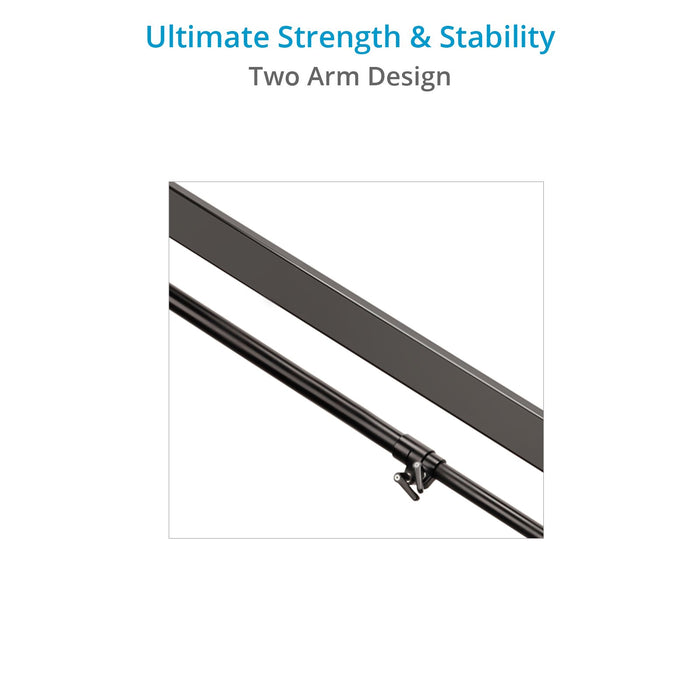

Two Arm Design offers enhanced strength & stability to the entire jib setup.

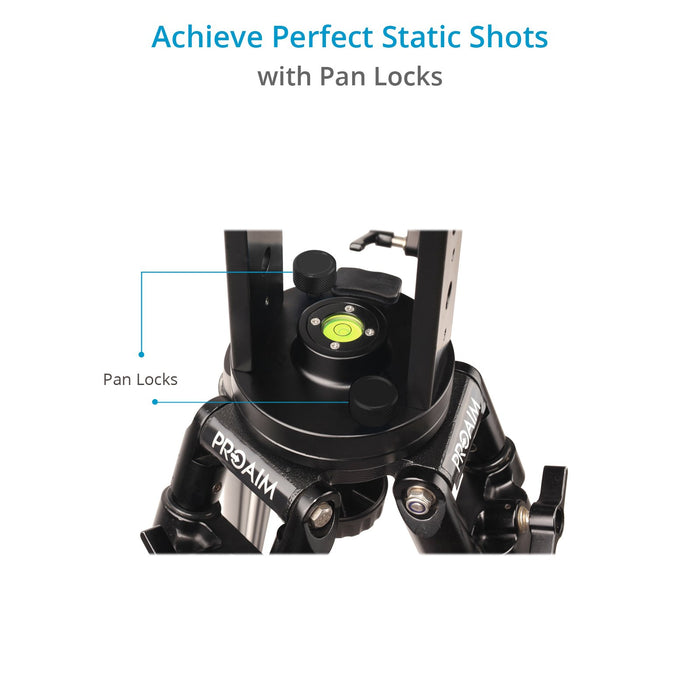

The Jib comes with pan knobs to control the panning of Jib.
Built-in bubble leveler offers fast, accurate set up on uneven surfaces.

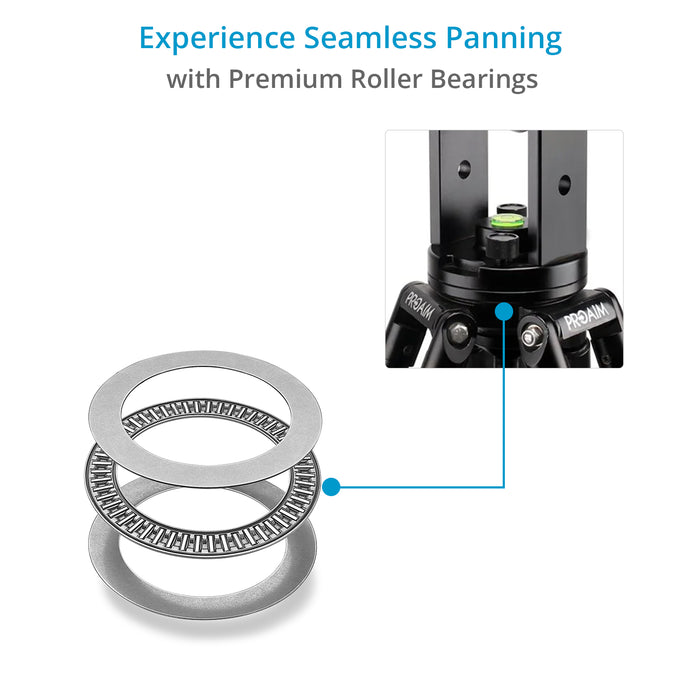

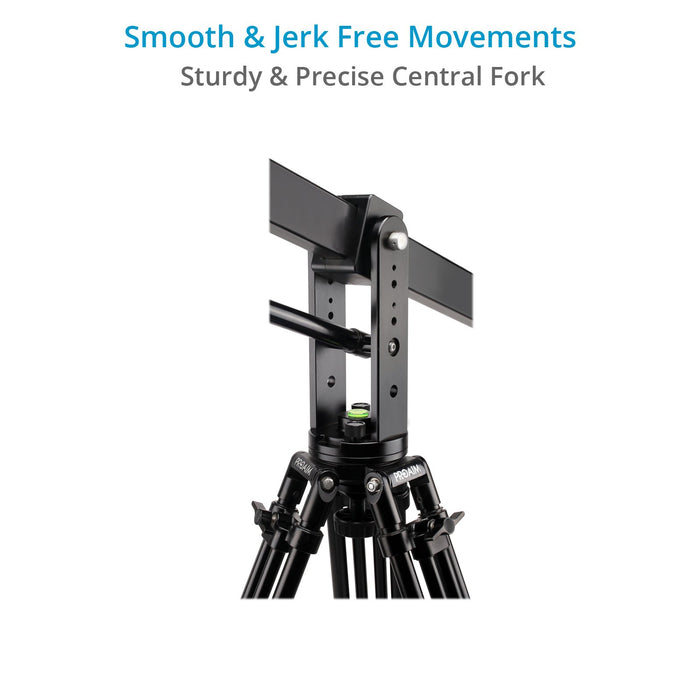

Assembly hub provides the perfect drag for smooth panning of the jib arm and absorbs unwanted vibration or movement from the operator.

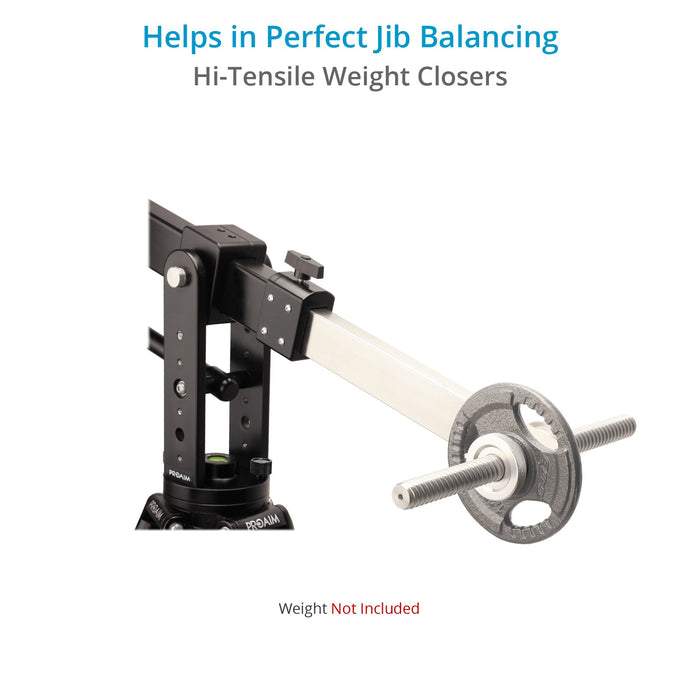

Hi-tensile weight closers keep the weight discs intact for perfect balance.
03.

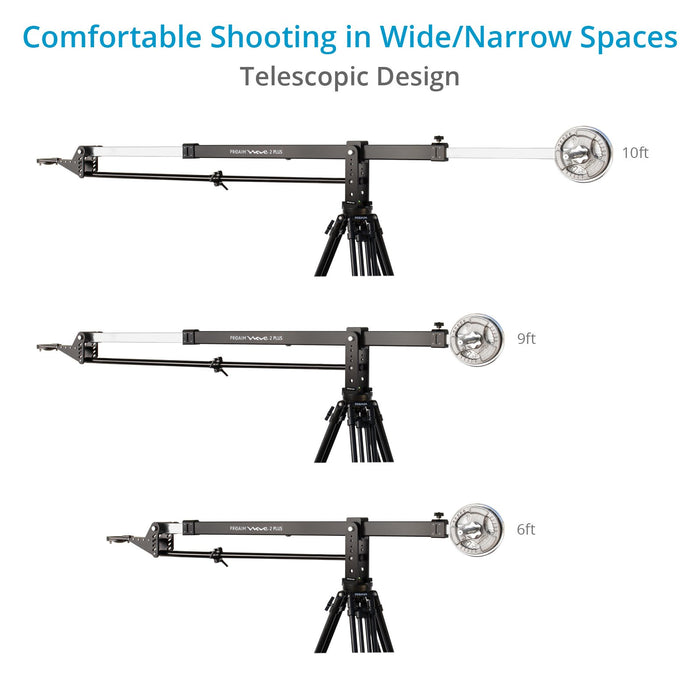

ADAPTABLE LENGTHS
This travel-friendly Jib telescopes from the backside, which helps in the balancing of Jib. You can adjust the arm length from 6 feet to 10 feet.
The ability to change the length allows you to use the Crane in various scenarios.
04.

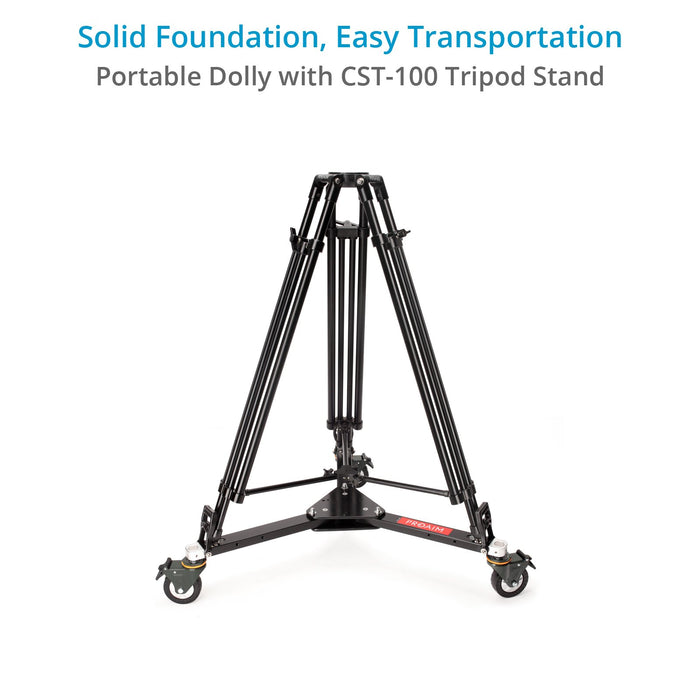

SOLID FOUNDATION FOR WAVE 10' CRANE
This excellent combination of CST 100mm Tripod Stand and Portable Camera Dolly is sturdy enough to support the Crane when it's fully loaded and weighed.
The Tripod with spreader gives immense support with an incredible payload of up to 80kg/176lb and is highly stable in use.
Heavy-duty Dolly gives movement to the Crane mounted on the Tripod and quickly takes payloads up to 500kg/1100lb.
The main features of Dolly are – Secure Tripod feet holders, locking brakes, high-quality wheels and foldable design.
05.
ENHANCE YOUR CREATIVE VISION

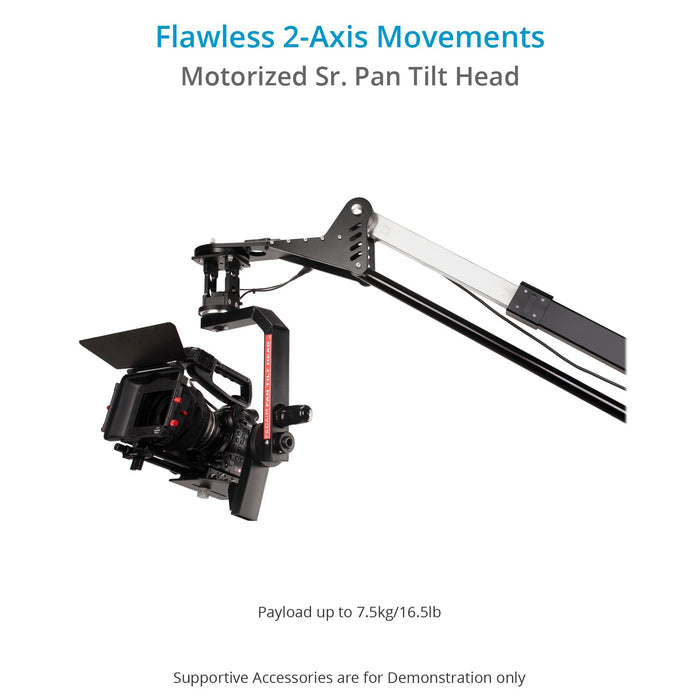

Proaim Sr. Pan Tilt Head
Proaim Sr. Pan tilt offers complete 360-degree pan & tilt inaudible movements while keeping your camera safe and secure. It is engineered to support cameras up to 7.5kg/ 16.5lb with ease. Creative flexibility is a built-in feature. The Pan Tilt head can be used with jib crane arms, tripods, and other remote operating situations that dictate increased production value. Incredibly accurate and easily controllable, Proaim Sr. Pan tilt is a user-friendly Controller System.
06.
PAN TILT FEATURES
Two Coreless Motors
Two coreless high torque motors provide inaudible movements along with a payload capacity of 5kg / 11lb, which is substantially higher than its counterparts.
Brass Gears
The high strength brass gears are engineered to withstand long hours of functions and minimal wear and tear.
07.
EASY OPERATION
Speed Controller- Speed Controller adjusts the speed of pan & tilt based on the requirement of the shot.
Dead Spot- The dead spot prevents the head from stopping suddenly with a jerk.
Damping Control- Damping control prevents the head from stopping with a jerk enabling you to achieve smooth endings.
Pan-Tilt Direction- You can reverse the panning & tilting direction as & when required.
08.
MOST AFFORDABLE JIB SOLUTION
For DSLR Video camera rigs, there isn't a better crane system for the money. Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim 10' Wave-2 Plus Jib package eliminates that concern by providing an excellent jib solution at an economical price.
09.

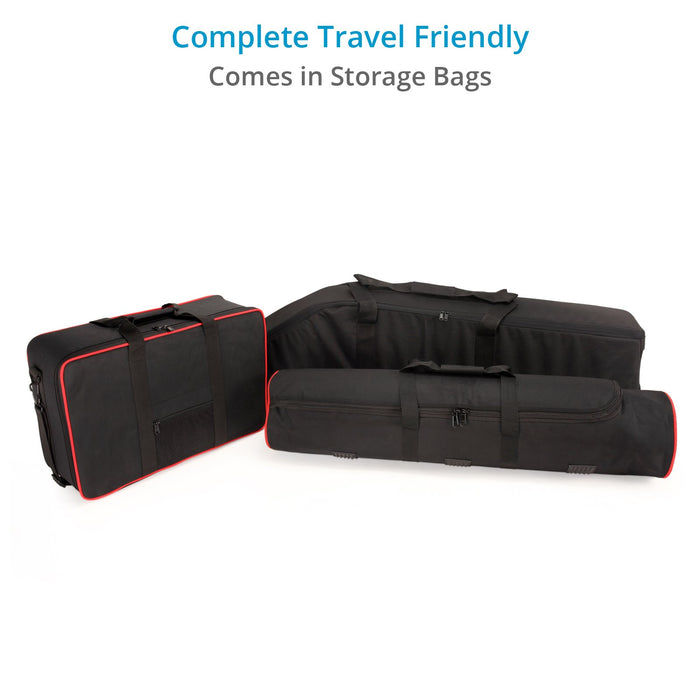

SIMPLIFIED TRANSPORT
The Crane System comes in high-quality bags for easy storage. These compact bags are easy to carry with you to different sets and locations.
IN-ACTION VIDEOS
SPECIFICATIONS
10' WAVE-2 JIB
Construction
High-grade Aluminum & Stainless Steel
Load Capacity
up to 25 kg / 55 lb
Tripod mount
100mm diameter
Camera Mount
Flat base plate for Pan tilts heads
100mm and 75mm Bowl head (with ring)
Telescopic Range
6 feet to 10 feet
Pan Radius
360 Degrees
Jib Pan Lock
Yes (via pan friction knobs on U-Hub)
Jib Tilt Lock
No
Camera Plate Tilt Lock
Yes (via adjusting the camera head plate knob and ratchet knobs on jib arm)
Self balance
7 kg/15 lb
Balancing Chart
Camera Weight | 15kg | 20kg | 25kg |
Counter Balance | 30kg | 40kg | 50kg |
Measured Length | 305cm | 259cm | 208cm |
Length from U Fork to Camera Plate | 201cm | 172cm | 143cm |
Note : The counterweight required to balance the jib will be approximately twice the weight of the camera setup. However, if the jib sections are collapsed, it may require fewer counterweights than is usually needed to balance the jib.
SENIOR PAN TILT HEAD
Made of Construction
High-Grade Aluminum
Load Capacity
7.5kg / 16.5lb
Pan & tilt
Movement: 360°
Speed
Minimum: 6°/sec
Maximum: 51°/sec
Covers 360° at Slowest Speed in : 2 minutes
Covers 360° at Highest Speed in : 7 seconds
Motors
Two high torque, coreless DC motors that rotate the Head 360° (Pan/Tilt)
Gears
2 Small Brass Gears: ⌀ 13.5mm
2 Large Aluminum Gears: ⌀ 88mm
Head Adjustments
Minimum Height of Head: 18.5" / 46.99 cm
Maximum Height of Head: 26" / 66 cm
JOYSTICK CONTROLLER
Connectors: 2x 4-Pin XLR Male Connectors
Pan/Tilt Direction: Yes
Upgraded with: Damping Knob
AC Adapter input
AC 100-240V ; Output 12V DC-2A
Cables
Cable Length: 15 meter (Can be extended up to 50 meter)
Cable Connector: 4-Pin XLR
Battery Cable: 3 meter Long
Weight
Pan/Tilt Head: 3 kg / 6.6 lb
Joystick: 800 gram / 28.22 oz
Bag Dimensions: 50 x 35 x 19 cm
CST-100 TRIPOD STAND
Construction
High-grade CNC Aluminum
Load Capacity
up to 80 kg / 176 lb
Diameter of Tripod Tubes
20mm and 14mm
Length
Maximum - 60 inches
Minimum - 34 inches
Collapsible Height
36 inches
Weight
6.50 kg / 14.33 lb
Package Weight
11.4 kg / 25 lb
Box Dimensions (LxWxH)
39.7 x 10.2 x 9.5”
ALUMINUM SPREADER
Construction
High-grade CNC Aluminum
Compatibility
All Tripods with Twin Spiked Feet
Load Capacity
up to 400 kg / 880 lb
Spreader Height
50mm / 2 inches
Build-up Radius
41 – 66cm / 16 – 26 inches
Weight
2.47 kg / 5.44 lb
Package Weight
3kg / 6.61lb
Box Dimensions (LxWxH)
55 x 18 x 14"
PORTABLE DOLLY
Construction
High-grade Mild Steel
Weighing Capacity
up to 500 kg / 1100 lb
Tripod Foot Compatibility
Spiked Feet
Locking Wheels
Yes
Weight of Product
10.7 kg / 23.5 lb
Package Weight
11.65 kg / 25.68 lb
Box Dimensions (LxWxH)
23.4 x 10.7 x 9.4"
IN THE BOX
Proaim 10' Wave-2 Plus Camera Jib Arm
Proaim CST-100mm Bowl Tripod stand with Aluminum Spreader (CST-100-01)
Proaim Portable Dolly (P-PRT-D)
Proaim Sr. Pan-Tilt Head (PT-SR)
12V Joystick Controller
75mm Conversion Ring
100mm Bowl Adapter
Flat base plate
Storage Bag
USER MANUAL
Guaranteed Fast Delivery |
Quick and Efficient |
Easy Returns |
1-Year Warranty |
Hey, only one word to describe this jib and the company that makes it. EXCELLENT!!! To say they take care of their customers is an understatement. I had a mix up with my shipment and as soon as I reached out to them and told them my issue, in less than 3 days, they rectified the matter and I received a new shipment. Wow! And I used this Jib on a short film the very next day. Beautiful product and well made. Solid and feel good when you handle it. Steady and smooth movement. I have no complaints here. This company has a new fanboy. Thank you, I TOTALLY recommend this jib for any cinematographer looking for a mini crane. STRONGLY recommend it...
Q&A
Ask a Question-
Do you also sell monitor holding facility for it ?
Yes, with the help of Proaim SnapRig 13inch Monitor Arm (MA220), the monitor can be mounted on the Proaim Wave Jib.
-
Can you attach the Zhiyun Crane 3S gimbal to the Wave-2 and if so which adapter is necessary.
Yes, You can mount Zhiyun Crane 3S gimbal on Proaim 7' Wave-2 Jib with the help of Flycam Quick Release DJI-QR and Proaim Quick Release plate P-QRG.
Here are the item links for your reference:
DJI-QR: https://business.proaim.be/products/flycam-quick-release-mount-for-ronin-m-mx
P-QRG: https://business.proaim.be/products/proaim-quick-release-plate-for-hand-held-gimbals -
Could it be controlled by a computer
The Proaim Pan Tilt Head PT-SR is only controlled by a joystick controller included in it. It will not be controlled by a computer.
-
Can the Sr. Pan Tilt Head be moved by hand if i don\'t want to use the motor?
Yes, the Proaim Senior Pan tilt head can be moved with hands but before this you have to disengage the motor gear to avoid any damage to the gears.
-
Concerning the Proaim 7\' Wave-2 Jib Crane, what \"standard\" counter weights does it use?
The weight rod diameter of the Proaim 7' Wave-2 Jib Crane is 25mm. You can use any counterweight with this diameter. Here is an image for reference: https://prnt.sc/tfZ_gD8tpJEu
-
What is the size of the central screw used to attach this jib with the tripod stand
The size of the central screw used to attach this jib with the tripod stand is M10.
-
What is the exact dimension from the centre of the bolt between the wheels?
The distance between one wheel to another is 80cm. Here is the complete dimension of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D:
https://prnt.sc/tBwFkvMn0OFP -
In this Lineo portable tripod dolly are the wheels replaceable with track wheels?
Yes, the wheels of Proaim Lineo Portable Video Camera Floor Dolly P-PRT-D are replaceable with Track wheels. Here is the link for the compatible track wheels:
https://business.proaim.be/products/proaim-track-wheel-set-for-proaim-portable-dolly -
Are the motors in the Pan/Tilt Head audible?
Yes, a minor sound of approx 60db is will be there.
