Proaim Atlas V2 Video Production Camera Cart

Proaim Atlas V2 Video Production Camera Cart

3 reviews
Save 17% Save 14%
€1.804,00
€1.750,00 - €1.950,00
€1.804,00
€1.544,00
€1.544,00 - €1.686,00
€1.544,00
or Buy now, pay later. Choose Klarna Pay Later / Slice it during checkout.

SKU : CT-ATLS-30

AT A GLANCE

Payload
Up to 500kg / 1100lb
cross bar mounting diameter
38mm
COMPATIBLE WITH
Video Production Equipment
Camera Cart Accessories
Monitors, Laptops & DIT Setups
Power & Cable Management Gear
BEST FOR
On-set Equipment Organization
DIT / Camera Department Workflows
Mobile Production Setups
Studio & Location Shoots

Secure checkout | Fast delivery | 30-day returns | 1-year warranty

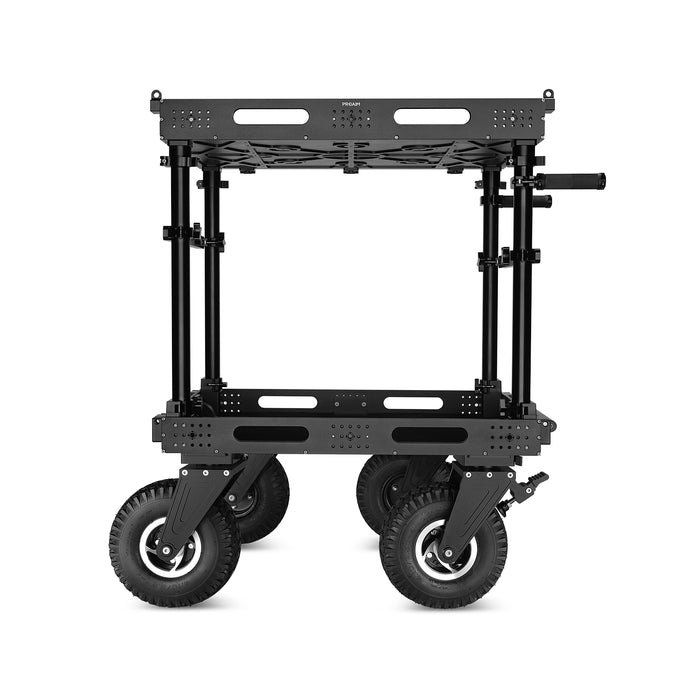

Atlas V2Video production cart

One cart for the whole crew. Up to 500 kg.

The Atlas V2 video production camera cart takes the heaviest camera, DIT and sound packages on set, in the studio or on location. Choose from three lengths. All three sizes share the same 25.75″ width and 41″ working height.

Compact · 30″

300kg

660 lb · CT-ATLS-30

Assembled 30 × 25.75 × 41″.

Standard · 38″

500kg

1100 lb · ATLS-V2-38

Assembled 38 × 25.75 × 41″.

Large · 48″

500kg

1100 lb · ATLS-V2-48

Assembled 48 × 25.75 × 41″.

Proaim Atlas V2

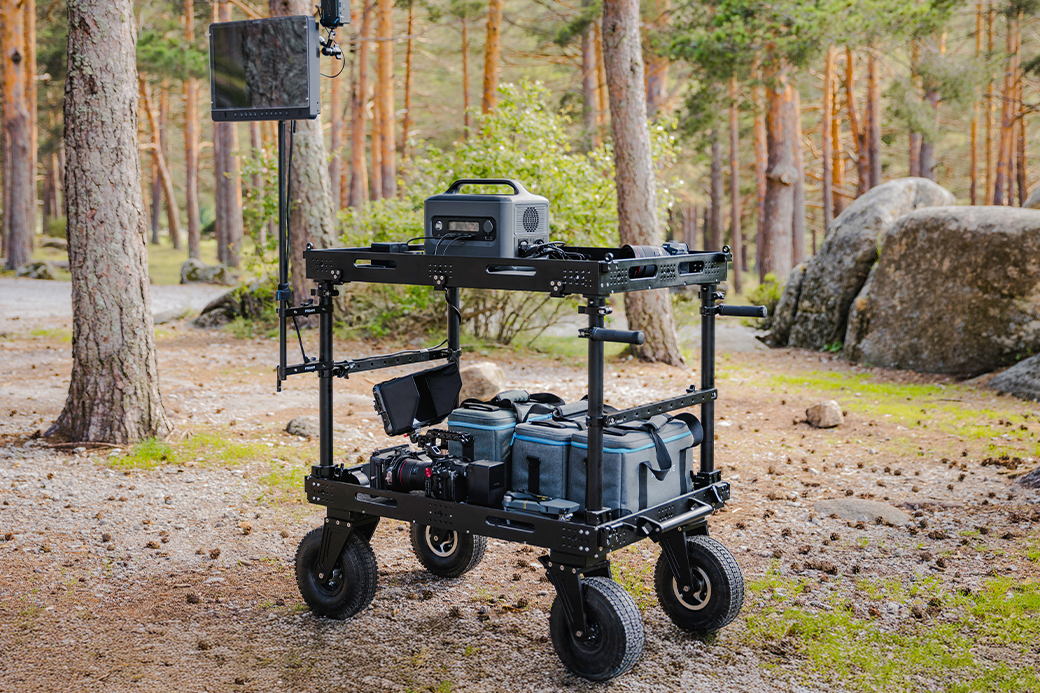

Atlas V2 cart fitted with monitors and accessories

Modular / Accessorised

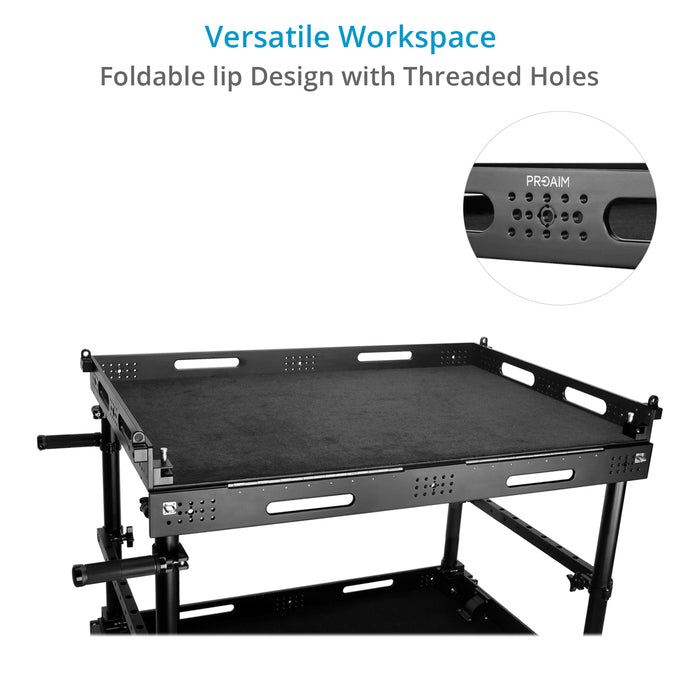

01Highly customisable

Much more than a standard camera cart.

Modular by design, the Atlas V2 film cart takes gimbals, monitors, baby pins, laptop plates and anything else you want to rig to it.

50+Compatible accessories
38 mmCross-bar clamp diameter
¼″ & ⅜″ARRI-standard threaded holes

Proaim Atlas V2

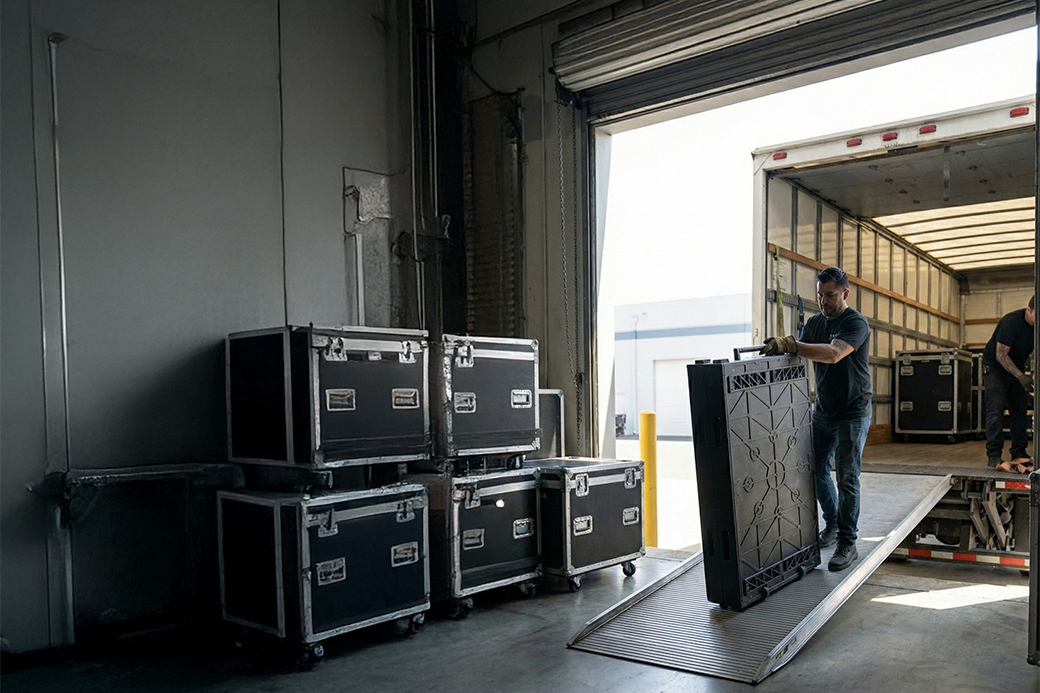

Atlas V2 cart being assembled without tools

Tool-less / Quick build

02Convenient design

Rolling in 2–3 minutes. No tools.

An average assembly or breakdown time of 2–3 minutes, a completely tool-less design, and the ability to collapse into a compact 7″ thick suitcase make it one of the most user-friendly carts on set.

2–3 minAssembly or breakdown
Tool-lessNo keys, no screws
7″Thick when packed

Proaim Atlas V2

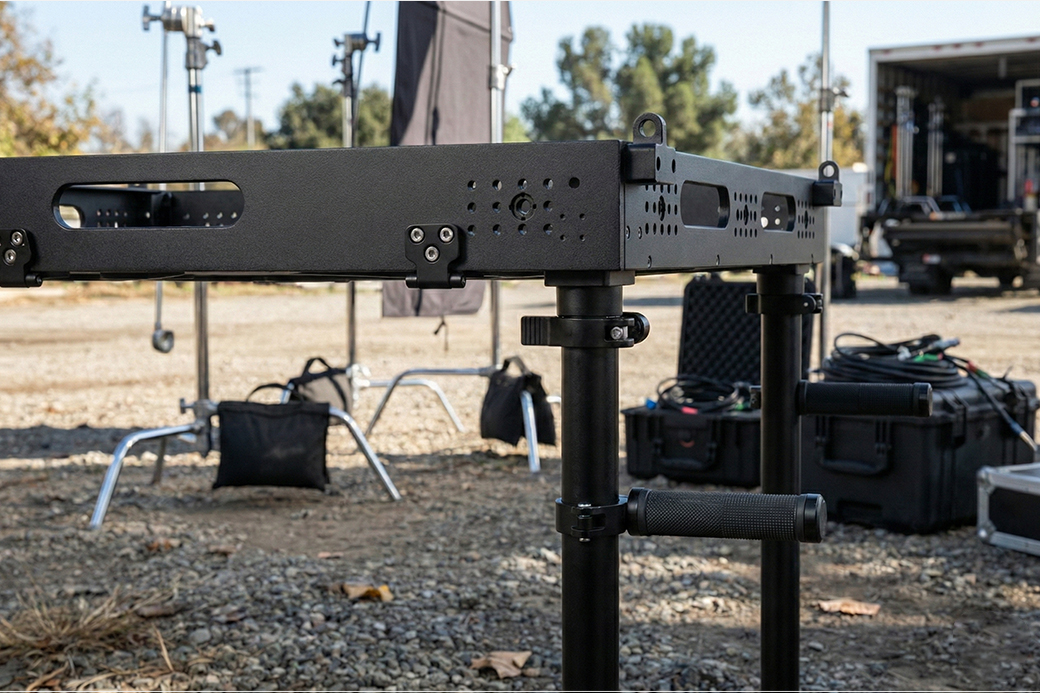

Atlas V2 adjustable handle with hinge locking mechanism

Handles / Hinge lock

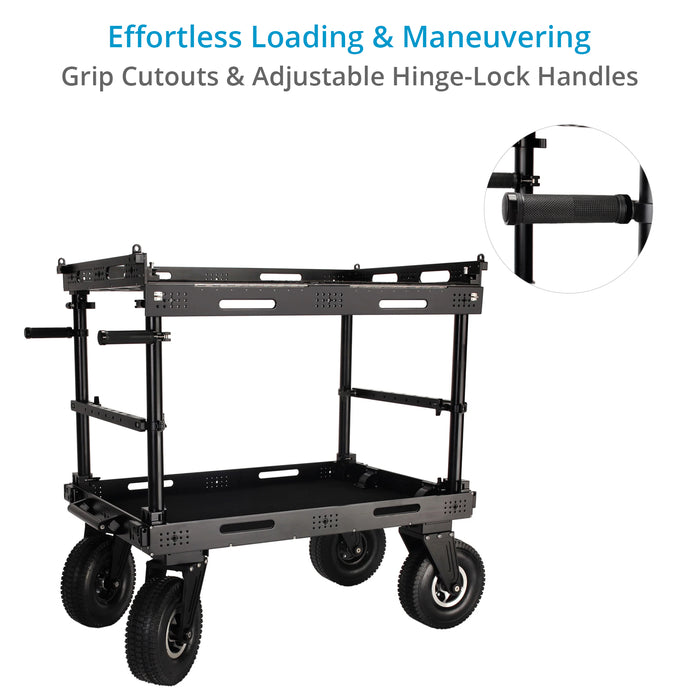

03Adjustable handles

Handles that move to suit you.

The new handle grips use a hinge locking mechanism, so you can remove them or change their position quickly and easily, without taking off the top shelf.

Hinge lockQuick angle change
RemovableIn seconds
Shelf staysNo need to strip the top

Proaim Atlas V2

Atlas V2 10 inch pneumatic wheel

10″ pneumatic / Sealed bearings

04Advanced wheel system

Rolls smooth and silent under any load.

Atlas V2 rides on 10″ pneumatic wheels with 100% sealed bearing housings, which ensure the cart endures any load placed on it and still rolls incredibly smooth and silent. A dovetail mechanism makes the wheels quick to assemble.

10″Pneumatic tyres
100%Sealed bearing housings
30 psiTyre pressure

Proaim Atlas V2

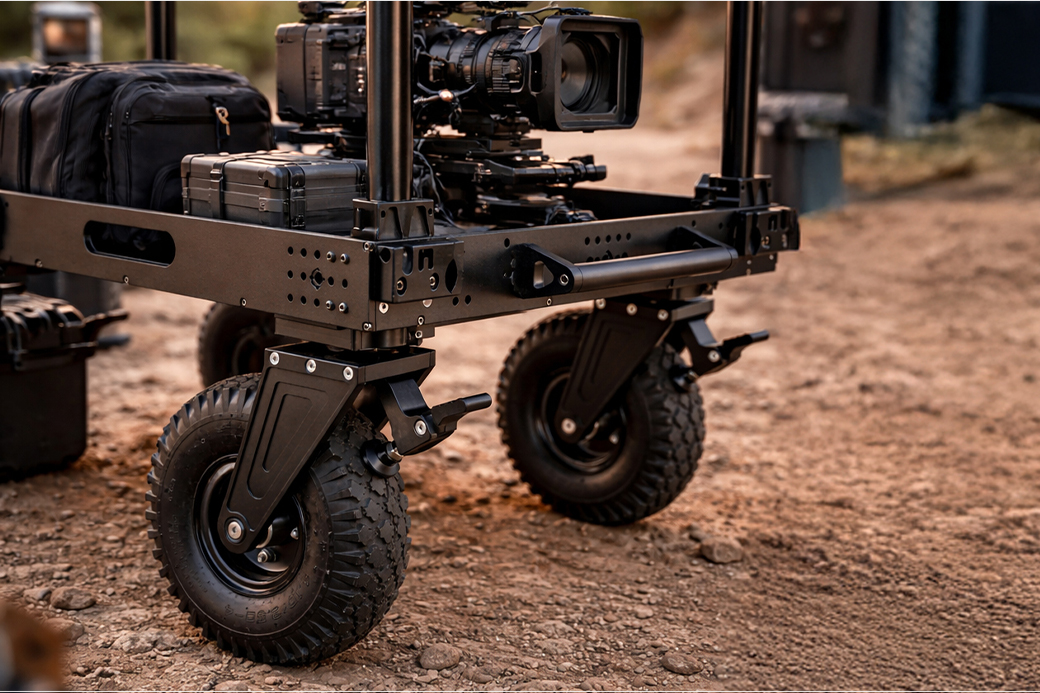

Atlas V2 foot brake

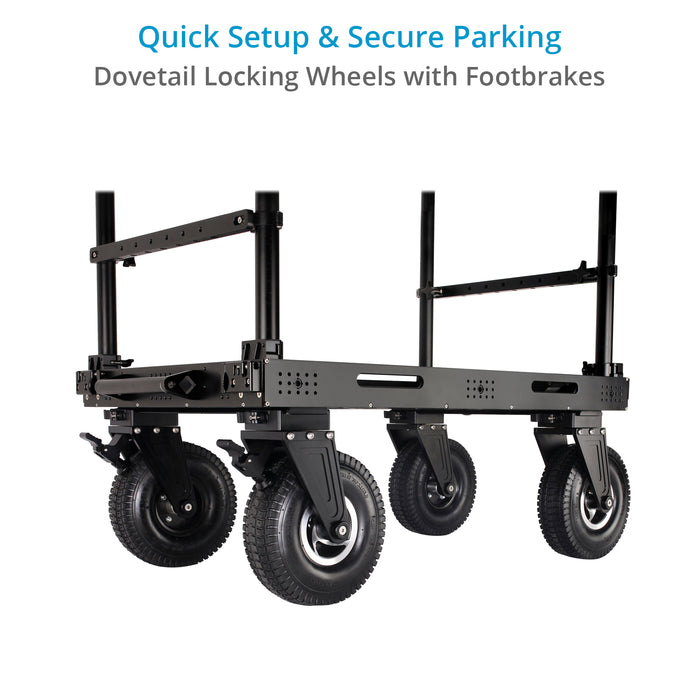

Foot brakes / Parking

05Always in control

Parks solid, wherever you stop.

Specially designed foot brakes keep the cart completely steady, stable and secure, so it stays exactly where you park it, even on a busy set.

Foot brakesOne-step lock
2 × 360°Swivelling rear wheels
2 × fixedNon-rotating front wheels

Proaim Atlas V2

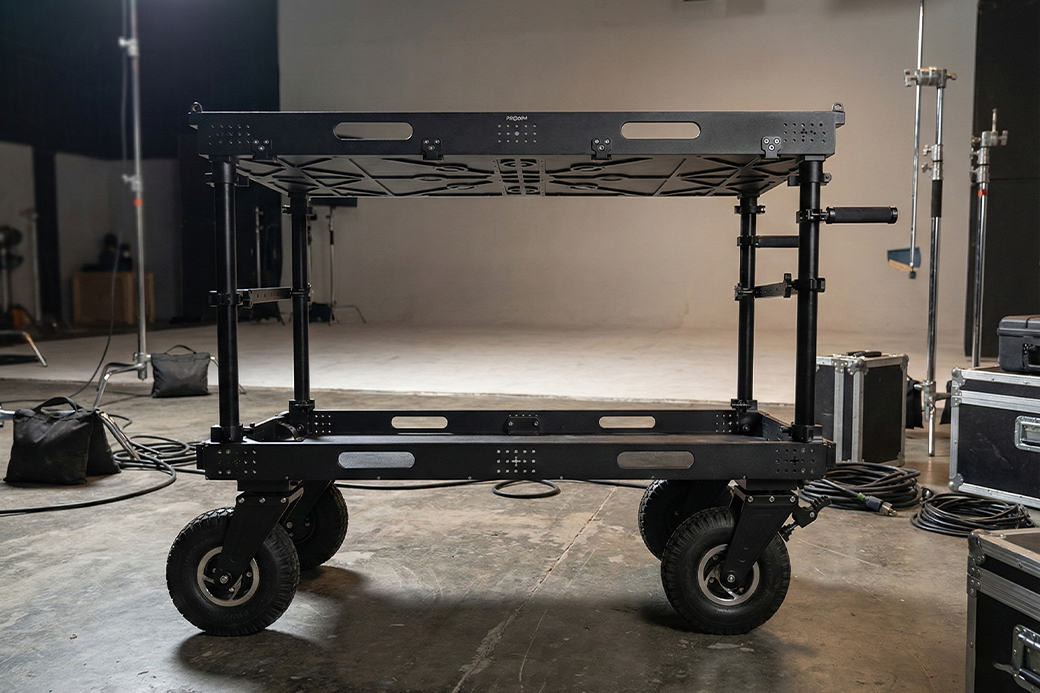

Atlas V2 shelf grip cutouts

Grip cutouts / Both shelves

06Grip cutouts

Lift it from either side.

New grip cutouts on both shelves let you pick the cart up from either end and load it into a truck or other vehicle without hunting for a handhold.

Both shelvesUpper and lower
Either sideLift from both ends
Truck-readyLoad straight in

Proaim Atlas V2

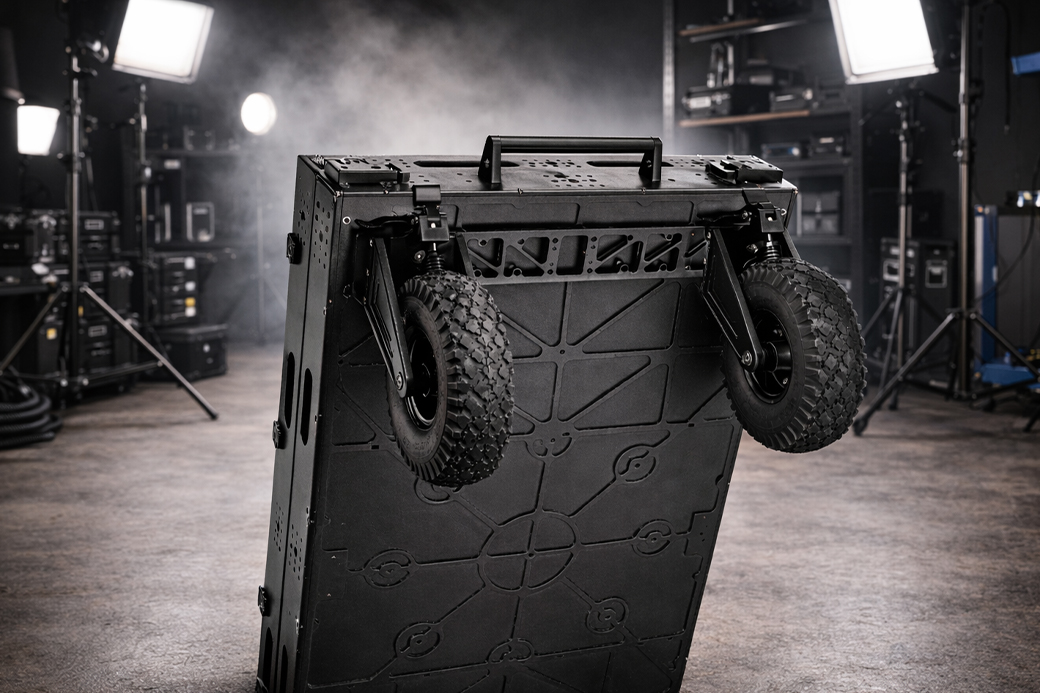

Atlas V2 cart collapsed for transport

Collapsed / Travel

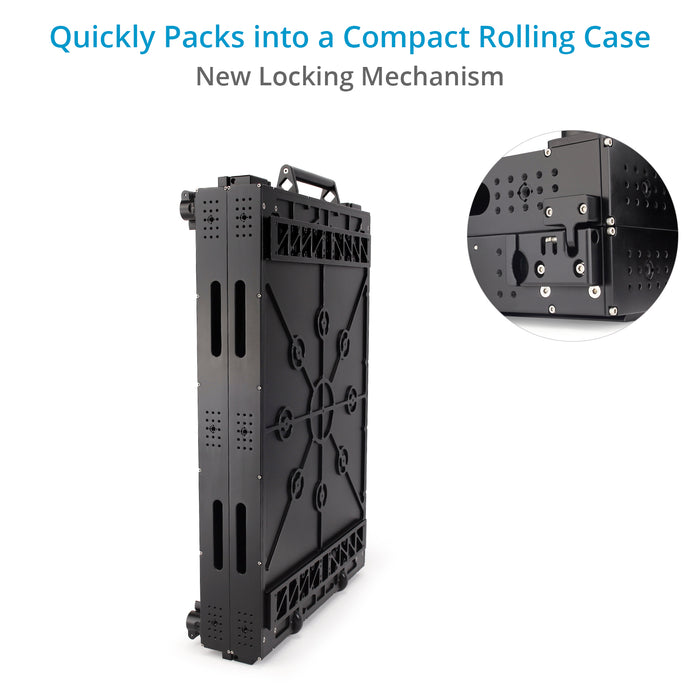

07Travel-friendly

Collapses on itself between locations.

Atlas V2 breaks down and stores away in a few minutes. It is built to fold in on itself when not in use, making it easy to transport from one location to the next.

Folds flatCollapses on itself
RollableCase-style when packed
PortableBuilt for travel

Proaim Atlas V2

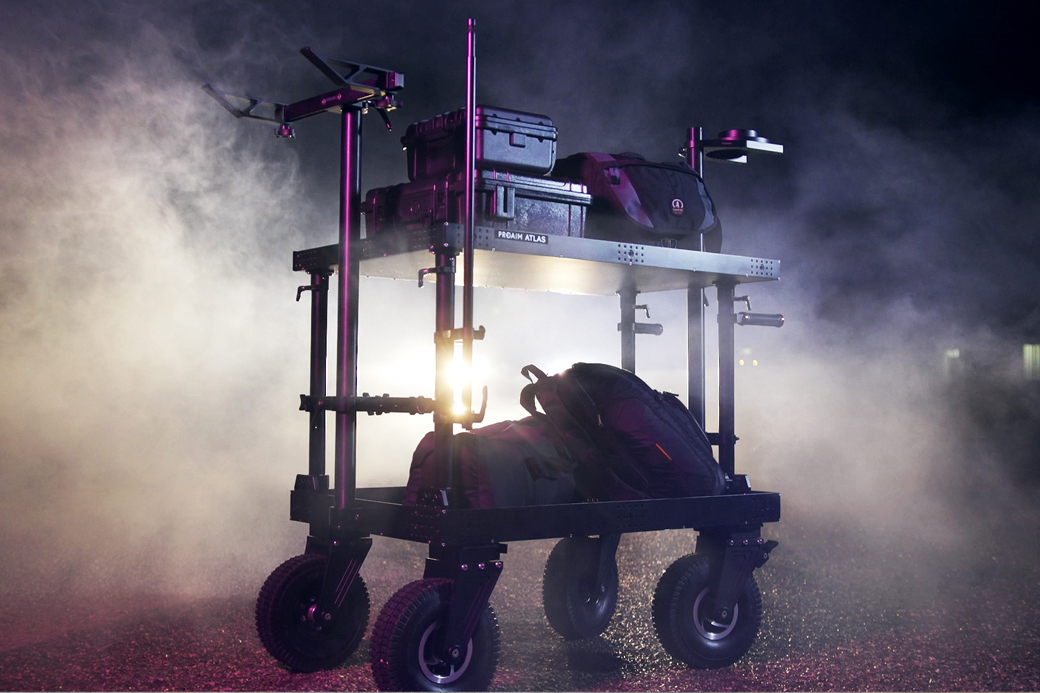

Atlas V2 aluminium frame and machined cross-bars

Aluminium / Machined

08Built to last

Made for long, hard-working days.

Built with long, hard-working days in mind. Constructed of aluminium with machined cross-bars, the cart is incredibly robust in design.

CNCHigh-grade aluminium
38 mmLeg outer diameter
8 mmShelf edge thickness

09Versatility

Camera, DIT, sound and beyond.

01

Camera cart

Made for camera department workflows, with a range of camera cart accessories.

02

DIT cart

Set up DIT workstations with power and cable management gear on board.

03

Sound cart

Build it up for the sound department.

04

Lighting cart

Rig it for lighting crews.

05

Equipment dolly

Keep on-set equipment organised for mobile production setups.

10In action

See how the Atlas V2 works.

Quick, foldable, packs into a case

Review

Much more than a standard camera cart

Overview

11Specifications

All sizes

ConstructionHigh-grade CNC aluminium
Leg outer diameter38 mm
Cart edge thickness8 mm
Rod length21″
Cross-bar length22″
Cross-bar mounting diameter38 mm
Accessory mounting¼″-20 & ⅜″-16 threadsARRI-standard NATO
Wheels10″ dia. × 3.5″ wide4″ alloy rim · 30 psi
Wheel configuration2 × 360° rear2 × fixed front

In the box

  1. 014 × Supporting rods
  2. 022 × Accessory cross-bars
  3. 034 × Pneumatic tyres
  4. 042 × Handles
  5. 05Upper shelf
  6. 06Lower shelf

User manuals

30″ · CT-ATLS-30PDF ↓ 38″ · ATLS-V2-38PDF ↓ 48″ · ATLS-V2-48PDF ↓

By size

Dimensions

Proaim Atlas V2 dimensions for CT-ATLS-30, ATLS-V2-38 and ATLS-V2-48

30″ / 38″ / 48″

30″CT-ATLS-3038″ATLS-V2-3848″ATLS-V2-48
Load capacity300 kg
660 lb		500 kg
1100 lb		500 kg
1100 lb
Assembled L × W × H30 × 25.75 × 41″38 × 25.75 × 41″48 × 25.75 × 41″
Product weight (without packing)47.5 kg
104.7 lb		53 kg
116.84 lb		58 kg
127.86 lb
Product weight (with packing)61 kg
134.4 lb		63.02 kg
139 lb		68.6 kg
151 lb
Packing dimensions88 × 77 × 36 cm78 × 110 × 40 cm79 × 137 × 31 cm
Fast deliveryOn all orders
Quick supportEfficient customer service
Easy returnsUp to 30 days
1-year warrantyOn all products
Customer Reviews
5.0 Based on 3 Reviews
5 ★
100%
3
4 ★
0%
0
3 ★
0%
0
2 ★
0%
0
1 ★
0%
0
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
PP
05/25/2022
Peter P.
Sweden Sweden

Really nice build quality!

The cart is rock-solid and swift to get from a small package to a full production cart. It totally works as a mobil workstation as well as a loading cart, going to save a lot of time and back-pain for sure.

Proaim Atlas V2 Video Production Camera Cart
Was this helpful?  0    0
EK
05/10/2022
Erik K.
Netherlands Netherlands

A very solid and robust cart!

When I opened the box I was very impressed with the quality and weight. It all looks very solid and robust. Some improvements have also been made that are not visible on the photos. For example, the hinge of the table is much nicer than on the photo and there are bags included for the wheels. Today I used the cart for the first time and I liked it a lot. A very good first impression!

Proaim Atlas V2 Video Production Camera Cart
Was this helpful?  0    0
D
05/16/2017
Dizzzah

Makes my day easier�

Love this cart,�I use it as a work bench when it's not carrying everything into the job site, and it comes fully built and folds very easily when the day is over. People always ask me where to get one . Highly recommended for those that need to move a bunch of tools around , or need a portable laptop table .

Proaim Atlas V2 Video Production Camera Cart
Was this helpful?  0    0

Q&A

Ask a Question



  • is there a way to lower the standard height 41” like i just need a 30” to 34” ?

    There is no option to change the height of the Proaim Atlas V2 cart as its top shelf is fixed. But we have the Proaim Victor pro cart as it has an up & down movable top shelf so you can adjust the height. For reference, you can watch this youtube video: https://youtu.be/6dyyoJ1zkqw

  • Do you make a travel bag for the Atlas V2 Cart?

    Yes, we can make it at the request of the customer.

  • What is the diameter of the inner opening on the wheel bearings? 1/2 inch or 5/8 inch maybe?

    The diameter of the inner opening on the wheel bearings varies from 17mm to 20mm.

  • Does the top shelf adjust up and down?

    The top shelf in Atlas V2 cart is not adjustable to up/down.

  • Does this cart work with Innovative accessories?

    If the Innovative accessory uses a 38mm clamping diameter, then it will fit on our cart as well, since our cart’s rod has a 38mm outer diameter.

  • What is the height between the bottom platform and the bottom of the top platform?

    The Proaim Atlas V2 Video Production Cart (38" and 48") has 22" of space between the two platforms.

  • "Does this have a crossbar? The photo shows a crossbar and the overview mentions it, but not ""in the box"" items."

    Yes, it has two crossbars.

  • Do you have Powered USBc and USB ports.

    Currently, we don't have the option to Power USBc and USB ports but we will work on it to make it compatible.

  • Is P-MLMT-M2 compatible with Atlas Cart ?

    Yes, the Proaim Multi Monitor Mounting System P-MLMT-M2 is compatible with the Proaim Atlas Cart.

  • What carpet you use for the carts ?

    The Black non woven carpets are used on our Carts.
